Product Name: Slurry Filter Press Pump
Flow: 0-72m³/h
Head: 41.8-74.9m
Condition: New
Use: Coal, Iron And Steel, Mines Etc.
High Light:

1080m/min metal and wood bandsaw


320mm high metal and wood bandsaw


1080m/min wood cutting band saw

Basic Infomation
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Model Number: XZBYL Series
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Supply Ability: 500 per month
Product Description

Slurry Filter Press Pump, Heavy duty mud water pump, Sludge Acid pump, coal, iron, copper, gold mining, Large capacity 0

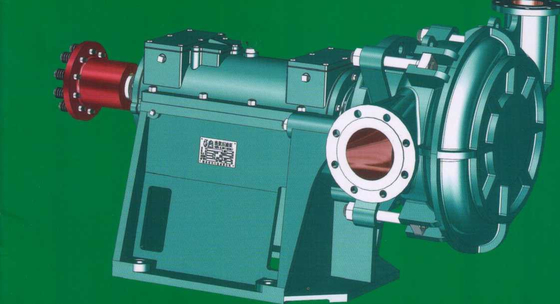

XZBYL Series Slurry Filter Press Pump

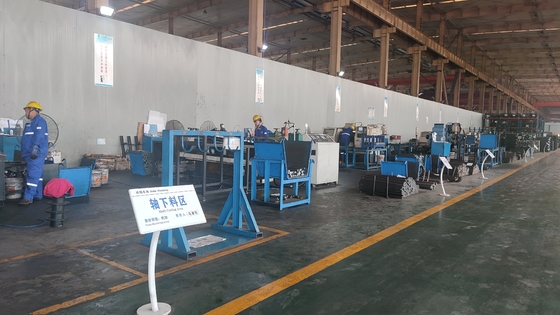

Hanlin Industrial is a collection of smelting, casting and machining. It is a key high-tech enterprises, the intellectual property advantage enterprises (the original national enterprise intellectual property pilot unit) of China. It has gained the IS09001 quality certification, the CCSC quality certification (Chinese Classification Society), it's a member of China General Machinery Industry Association and the Pump Branch Member Units, key enterprises in the production of slurry pump, petrochemical pump desulphurization pump and stage pump.


Slurry filter pump, slurry pump and pump horizontal thick slurry bubble were identified as national key new products by Ministry of Science and Technology, Ministry of Environmental Protection. At the same time, slurry filter pump, slurry pump, ZB type slurry pump were identified as Independent innovation products in Hunan province by Department of Science, Development and Reform Commission (NDRC), the Financial Department of Hunan province, and Petrochemical pumps and other products achieved Sinopec qualified supplier qualification.


The slurry filter press pumps of ZBYL series are parent production designed by our company. They have comprehensive application of the latest theories and techniques aiming at solve the problems such as pump suffocation, leakage, low efficiency , which ordinary slurry pump have when press the slurry.

At the same time this production was conferred as ''National key new product*, certificate by the Ministry of Science and Technology, Ministry of Environmental Protection, Ministry of Commerce, the State administration of Quality Supervision Inspection and quarantine of People' s Republic of China.



To drastically solve the leakage problem of filter press pump, it adopts the Radial breathing mode which coordinates with vice impeller expeller seal technology.

With the application of the technology of CAD and optimization theory, all pumps of this series are efficient enough to reach the requirement to the premium grades of "JB/T53060-93 centrifugal slurry pumps grading of product quality".

"Non overload design" theory is used in the designing process of the pump. When the rate of flow is high, the head of delivery is low, while when the rate of flow is low, the head of delivery is high. This king of head curve totally accord with the requirements for slurry pump in filtering and pressing slag slurry.


ZBYL series slurry filter press pumps can take the place of ordinary slurry pump and traditional two stage filter press pump in filtering and pressing slag slurry in many industries such as Coal, iron and steel, and mines.


XZBYL series is the second generation of ZBYL series:

  • The material of suction, pressure relief cover and vice impeller is changed from ordinary cast iron to antifriction iron, so that the life of the above-mentioned part improves greatly.From the direction of the pump, the suction inlet can be put on either side of the pump compared with the former which the suction inlet can only on the left.
  • According to the user feedback of the ZBYL pump, XZBYL series made some improvement in strength and reliability, and further improved the life of the pump and the main parts.
  • New generation of the XZBYL slurry pumps have much lower head of delivery when the rate of flow is high, which more in line with the requirement for slurry pump filter press slag slurry.
  • Variety of the series rom 4 to 6. Two varieties X100ZBYL-450 and X150ZBYL-630 were added. The design flow from 144m3/h to 468m3/h which reaches all requirements for slurry pump filter press slag slurry.


Naming Rules


  • X--New Generation
  • 40--the Discharge Diameter of Pump
  • ZBYL--Slurry Pressure Filter Pump
  • 250--The Nominal Diameter of Impeller(mm)



Performance table of X40ZBYL-250
Q(m3/h) H(m) Pa(kW) E(%)
0   11.7 0.0
7.2 74.9 12.2 12.0
14.4 74.0 12.9 22.4
21.6 72.6 13.8 30.8
28.8 70.6 14.8 37.3
36 68.0 15.9 42.0
43.2 64.6 16.9 45.1
50.4 60.4 17.8 46.7
57.6 55.2 18.5 46.9
64.8 49.1 19.0 45.6
72 41.8 19.2 42.7
