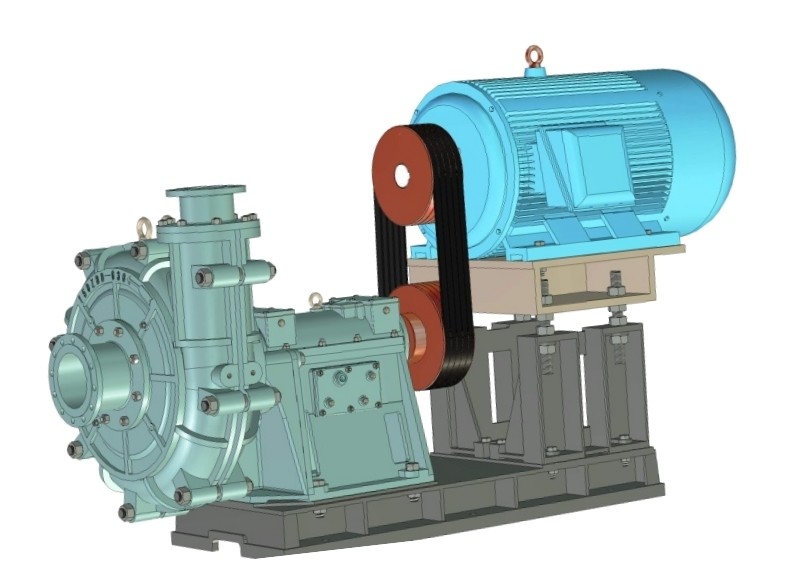

200ZBQ-400 Slag Slurry Pump
Clear Water Performance Parameter of ZBQ Series Slurry Pumps At The Same Speed
|
Production Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 200ZBQ-400 | 1480 | 900.0 | 50.0 | 75.5 | 200~ 250 | 980 | 595.9 | 21.9 | 72.6 | 55-75 |
| 1080.0 | 45.9 | 77.6 | 715.1 | 20.1 | 74.6 | |||||
| 506.6 | 49.5 | 62.4 | 335.4 | 21.7 | 60.0 | |||||
| 200ZBQ-400A | 1480 | 844.3 | 44.0 | 75.0 | 160~ 200 | 980 | 559.0 | 19.3 | 72.1 | 55-75 |
| 1013.1 | 40.4 | 77.1 | 670.9 | 17.7 | 74.1 | |||||
| 470.8 | 42.7 | 62.0 | 311.7 | 18.7 | 59.6 | |||||
| 200ZBQ-400B | 1480 | 784.6 | 38.0 | 74.5 | 132 -160 | 980 | 519.5 | 16.7 | 71.6 | 37-55 |
| 941.5 | 34.9 | 76.6 | 623.4 | 15.3 | 73.6 |
Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.
