Chemistry GW GS Series Diaphragm Metering Dosing Pump Centrifugal Proportional
Features Gallery Product Description Request A Quote
Features
Specifications
Max Flow Rate: 4.5-53L/h
Max Discharge Pressure: 6-10Bar
Stroke Frequency: 20-166/min
Stroke: 4 Mm
Diaphragm: 60mm
Motor Power: 25W
High Light:

GS Series Diaphragm Metering Dosing Pump

,

Centrifugal Diaphragm Metering Dosing Pump

Basic Infomation
Place of Origin: China
Brand Name: CNP
Certification: ISO9001
Model Number: GW, GS Series
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 6-8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/month
Product Description

GW, GS Series Mechanical Isolating Diaphragm Metering Pump,High Pressure Medical,Chemistry,Centrifugal,Proportional Pump

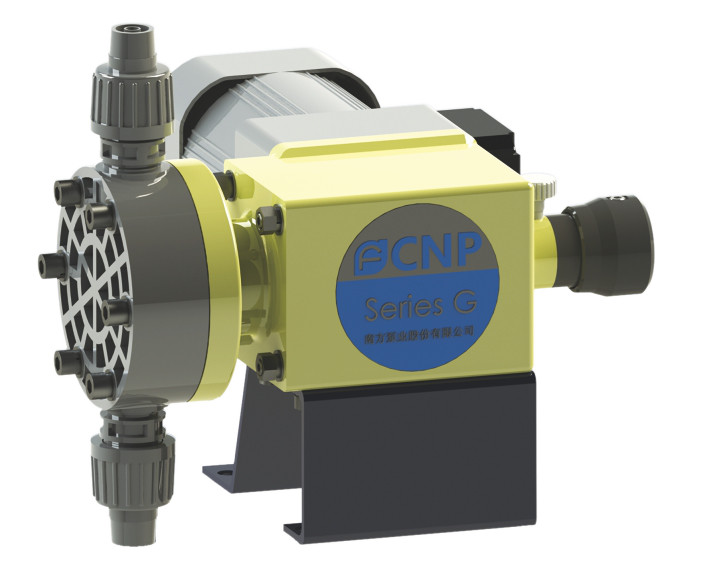

Chemistry GW GS Series Diaphragm Metering Dosing Pump Centrifugal Proportional 0





Main Performance Parameters

  • Max flow rate: 53L/h
  • Max discharge pressure: 10bar

  • Turndown ratio 10:1, steady-state accuracy ±2%

  • Max suction lift: 1.5m water column

  • Max ambient temperature: +40℃

  • Max inlet pressure: 1bar



Major Features

Fluid End

  • Mechanical drive diaphragm and material side without diaphragm are easy for passing the materials
  • Various pump head materials include PVC, PVDF, 316SS and others. They are suitable for conveying various materials
  • Self-cleaning check valve structure

Drive End

  • Variable eccentric structural adjustment ensures smooth fluctuations in flow pulsation
  • Upgraded structural for harsh operating environments
  • GS Series
  • It adopts reliable cam structure, with lower noise, flexible disassembly, and easy maintenance features, for harsh working conditions
  • It is supported by a sliding bearing, which ensures smooth and reliable work states, non^noise, lower maintenance costs



Control Mode

  • Power supply: 380V/220V-50Hz/60Hz/three-phase/single-phase.
  • Motor controller determines three-phase motor by "on/off" mode, adjusts the output flow



Main Applications

  • Power supply: 380V/220V-50Hz/60Hz/three-phase/single-phase.
  • Motor controller determines three-phase motor by "on/off" mode, adjusts the output flow



Main Components of the Fluid End

Fluid End Pump Head Valve body,valve seat Valve seal Valve ball Seal ring Isolating diaphragm Connections
PVC PVC PVC PVDF Zirconia Fluororubber PTFE composite diaphragm PVC
PVDF PVDF PVDF PVDF Zirconia Fluororubber PTFE composite diaphragm PVDF
316SS 316SS 316SS 316SS 316SS Fluororubber PTFE composite diaphragm 316SS


Flow/Pressure

Code Max flow rate (L/h) Stroke frequency (min) Max Bar (bar) Stroke (mm) Diaphragm (mm) Motor power (W)
GW003 4.5 20 10 4 60 25
GW005 6 30
GW010 13 50
GW025 24 83 7
GW030 30 100
GW035 36 120 5
GW045 46 150 4
GW055 53 166 2
GS003 4.5 20 10
GS005 6 30
GS010 13 50
GS025 24 83 7
GS030 30 100
GS035 36 120 5
GS045 46 150 4
GS055 53 166 2





GW Series Dimensions



Chemistry GW GS Series Diaphragm Metering Dosing Pump Centrifugal Proportional 1



GS Series Dimensions
Chemistry GW GS Series Diaphragm Metering Dosing Pump Centrifugal Proportional 2
