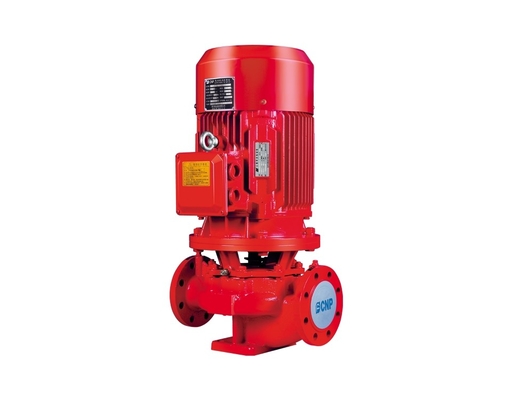

Fire Fighting Water Pump Set, Vertical Portable Single-Stage Pump, Diesel Engine, High Pressure Water Pump, Safety Base





Product Description
XBD-TD vertical single-stage fire pump set is a new product developed by our company according to market demand and combined with the basis of advanced pump types at home and abroad. The product performance and technical conditions meet the requirements of the GB6245-2006 "Fire Pump" standard.
XBD-TD vertical single-stage fire pump set consists of motor and pump. The pump and motor are coaxial. The pump structure includes pump body, impeller, pump cover, mechanical seal and other parts. The inlet and outlet of the pump are on the same horizontal axis, and the diameter and specification are the same, which is extremely convenient for loading and unloading, and occupies a small area.

The pump is provided with a safety base, which is easy to install and increases the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage. The axial force of the pump is balanced by the balance hole of the impeller. The inlet and outlet flanges of the pump are designed according to the pressure of 1.6MPa, and the pipeline is easy to match.



Scope of application
The pump is mainly used in the pipeline pressurized water supply of the fire protection system.

It is also suitable for the water supply of fixed fire-fighting systems (fire-extinguishing systems, automatic sprinkler fire-extinguishing systems, water spray fire-extinguishing systems and fire-stabilizing systems, etc.) in industrial and civil high-rise buildings.

It also works for municipal, industrial and mining, boiler feed water and condensate systems, water treatment systems, filtration systems and cleaning industries.



Working Conditions
It can transfer non-flammable and explosive liquids that do not contain solid particles or fibers.

Liquid temperature: normal temperature.
Ambient temperature: up to 40°C.



Motor
The motor is an air-cooled customized shaft extension two or four pole motor.
Protection class: IP55
Enough grade: F
Standard voltage: 3x380V
Frequency: 50Hz

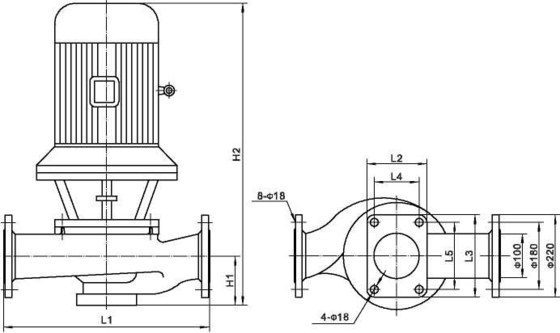

Specifications

Type Measures(mm) Weight(kg)
H1 H2 L1 L2 L3 L4 L5
XBD15.0/20G-TD 175 1310 680 230 320 170 260 950
XBD4.8/25G-TD 145 880 520 160 220 120 180 245
XBD5.5/25G-TD 140 1015 550 160 220 120 180 330
XBD7.0/25G-TD 140 1015 550 160 220 120 180 330
XBD8.0/25G-TD 140 1015 550 160 220 120 180 345
XBD9.0/25G-TD 155 1080 640 230 320 170 260 430
XBD10.0/25G-TD 155 1080 640 230 320 170 260 430
XBD11.0/25G-TD 155 1165 640 230 320 170 260 549
XBD12.0/25G-TD 155 1235 640 230 320 170 260 680
XBD13.0/25G-TD 175 1260 680 230 320 170 260 830
XBD14.0/25G-TD 175 1260 680 230 320 170 260 830



Type Flow Outlet Pressure Rotating Speed Power
(L/s) (Mpa) (r/min) (kW)
XBD15.0/20G-TD 0 ≤2.100 2900 90
20 1.500
30 ≥0.975
XBD4.8/25G-TD 0 ≤0.672 22
25 0.480
37.5 ≥0.312
XBD5.5/25G-TD 0 ≤0.770 30
25 0.550
37.5 ≥0.358
XBD7.0/25G-TD 0 ≤0.980 30
25 0.700
37.5 ≥0.455
XBD8.0/25G-TD 0 ≤1.120 37
25 0.800
37.5 ≥0.520
XBD9.0/25G-TD 0 0.260 45
25 0.900
37.5 0.585
XBD10.0/25G-TD 0 ≤1.400 45
25 1.000
37.5 ≥0.650
XBD11.0/25G-TD 0 ≤1.540 55
25 1.100
37.5 ≥0.715
XBD12.0/25G-TD 0 ≤1.680 75
25 1.200
37.5 ≥0.780
XBD13.0/25G-TD 0 ≤1.820 75
25 1.300
37.5 ≥0.845
XBD14.0/25G-TD 0 ≤1.960 75
25 1.400
37.5 ≥0.910



Type Measures(mm) Weight(kg)
H1 H2 L1 L2 L3 L4 L5
XBD3.2/100G-TD 250 1210 860 300 370 250 320 675
XBD4.0/100G-TD 260 1300 880 300 370 250 320 825
XBD5.0/100G-TD 260 1300 880 300 370 250 320 830
XBD6.5/100G-TD 280 1370 855 370 470 300 400 1050
XBD7.0/100G-TD 210 1205 800 270 320 250 270 1050
XBD8.0/100G-TD 210 1205 800 270 320 250 270 1185
XBD9.0/100G-TD 225 1565 860 300 370 250 320 1200
xBD10.0/100G-TD 225 1565 860 300 370 250 320 1200
XBD11.0/100G-TD 225 1565 860 300 370 250 320 1280
XBD12.0/100G-TD 225 1565 860 300 370 250 320 2120



Type Flow Outlet Pressure Rotating Speed Power
(L/s) (Mpa) (r/min) (kW)
XBD3.2/100G-TD 0 ≤0.448 1480 55
100 0.32
150 ≥0.208
XBD4.0/100G-TD 0 ≤0.560 1480 75
100 0.4
150 ≥0.26
XBD5.0/100G-TD 0 ≤0.700 1480 75
100 0.5
150 ≥0.325
XBD6.5/100G-TD 0 ≤0.910 1480 110
100 0.65
150 ≥0.422
xBD7.0/100G-TD 0 ≤0.980 2900 110
100 0.7
150 ≥0.455
XBD8.0/100G-TD 0 ≤1.120 132
100 0.8
150 ≥0.520
XBD9.0/100G-TD 0 ≤1.260 160
100 0.9
150 ≥0.585
XBD10.0/100G-TD 0 ≤1.400 160
100 1
150 ≥0.650
XBD11.0/100G-TD 0 ≤1.540 200
100 1.1
150 ≥0.715
XBD12.0/100G-TD 0 ≤1.680 250
100 1.2
150 ≥0.780
