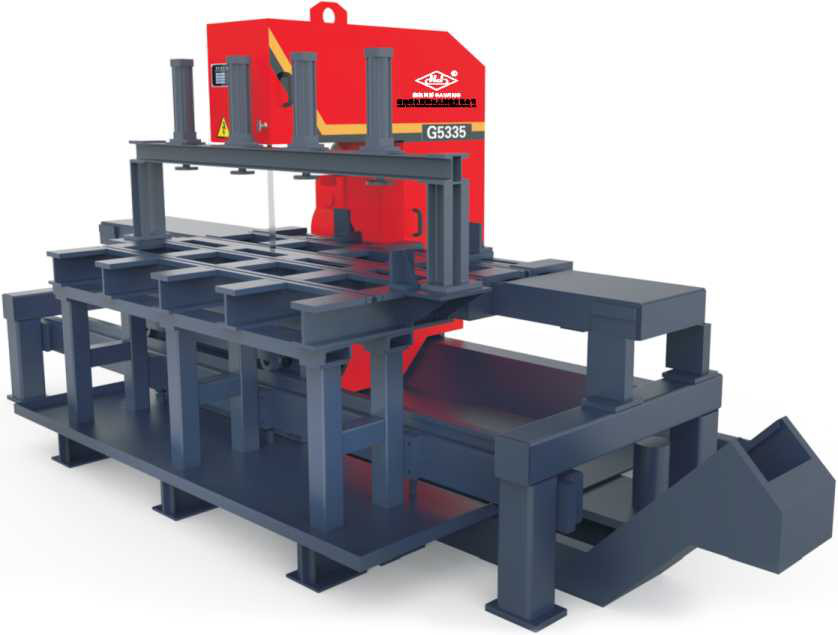

G5335 Vertical Plate Band Sawing Machine
This product is mainly used for bulk cutting of medium and large size die blank, slab and other metal materials. The product is suitable for height 350 (850) mm, length 2000mm (2000/4000/6000mm), weight 8000kg
Widely used in mold, slab and other machining industries that need long distance cutting.
| Parameters | unit | Specifications |
| G5335 | ||
| Maximum sawing height | mm | 350 |
| Deep throat | mm | 800 |
| Minimum saw cut width | mm | 10 |
| Maximum sawing length | mm | 2000 |
| Band saw blade saw cutting speed (stepless) | m/min | 22-105. |
| Feed speed | mm/min | 3-94. |
| Fast forward, fast backward | m/min | 1.5 |
| The size of saw blade | 41 x1. 25 x4570 | |
| Table width | Outer workbench 500mm inner workbench 800mm | |
| Table load | Outer workbench is 5000kg and inner workbench is 4000kg | |
| Main motor power | kw | 4kw |
| The total power | kw | 5kw |
| Machine tool dimensions | 4160X2100X2190 | |
| Machine net weight | kg | 5200kg |
