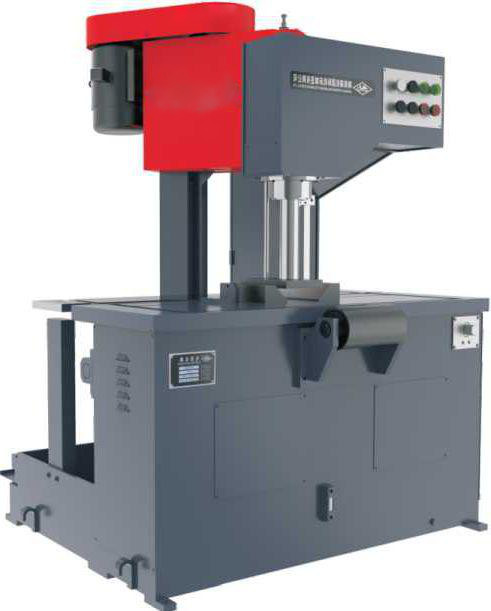

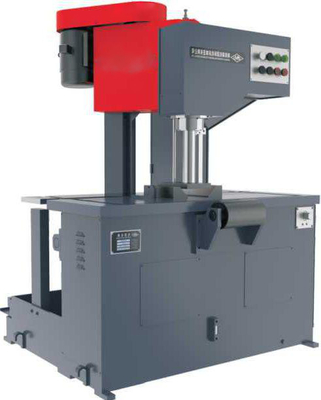

Hydraulic Vertical Band cutting Saw Machine
Product information
This product is a kind of small vertical band sawing machine with block, it has the cutting function of vertical band saw and horizontal band saw, especially suitable for sawing the materials such as die blank, slab, bar material, etc., and can also sawing all kinds of special-shaped materials under special condition.
It has the advantages of narrow mouth, material saving, energy saving, high cutting precision, easy operation and high production efficiency.
| Parameters | unit | Specifications |
| G5328 | ||
| Maximum sawing thickness | mm | Φ180 (when the sawing length is more than 300) |
| Maximum sawing diameter | mm | Φ280 (when sawing length is less than 300) |
|
Maximum sawing length at one time mm |
500 | |
| Maximum sawing width mm | 300 | |
| Band saw blade milling speed | m/min | 25. 40; 64 |
|
Specification of band saw blade (width x thickness X length) mm |
27 x0.9 x3350 | |
| Band saw blade feed rate | mm/min | 1-400 (stepless adjustable) |
| Hydraulic system pressure Mpa | 1.5 | |
| Main motor power | KW | 2.2 |
| Hydraulic motor power KW | 0.75 | |
| Cooling motor power | KW | 0.125 |
| Machine tool external dimension mm | 1320X1270X1715 | |
| Machine net weight | kg | 1200 |
