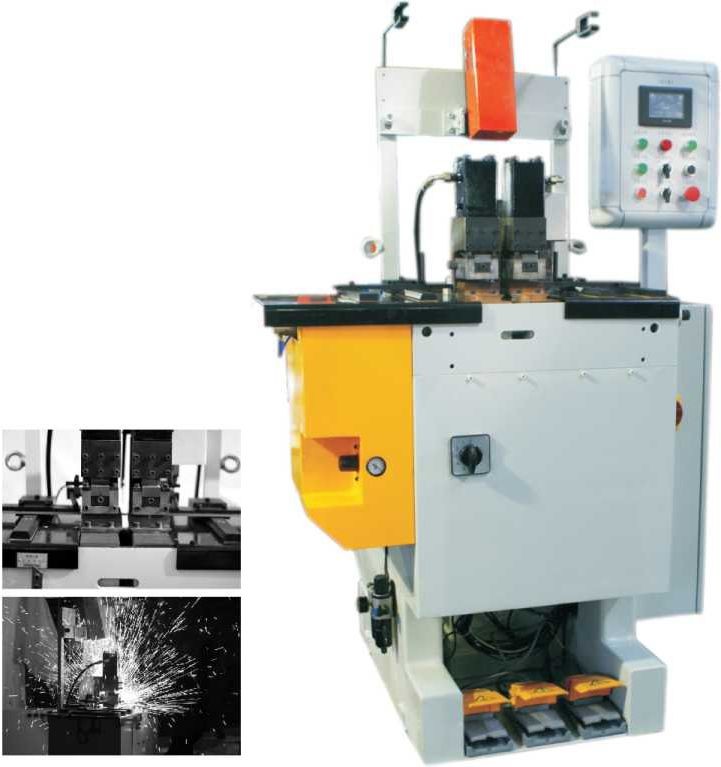

Hydraulic Horizontal Flash Saw Band Welding Machine
This product is mainly used for welding of bimetallic band saw blades. suitable for all kinds of ferrous metal strip materials with the maximum welding width of 80mm and thickness of 1.6mm.
Widely used in steel belt production and sales enterprises such as band saw blade and band knife.
| The basic parameters unit | Specifications |
| UZN-25 | |
| The welding specifications | |
| Bimetallic saw band mm | 19-80. |
| Ordinary steel belt mm | 19-80. |
| Rated RongTong kVA | 25 |
| Line load continuity rate % | 25 |
| Maximum overhead forging force KN | 14 |
| Type of welding table | Horizontal |
| The clamping way | hydraulic |
| Upsetting way | Pneumatic |
| Tempering temperature adjustment mode | Automatic |
| Product dimensions mm | 1200X1100X1900 |
| Product net weight kg | 650 |
