Horizontal Bandsaw Blade Welding Machine , 25KVA Saw Blade Welder

1 Set
MOQ
Negotiable
Price
Horizontal Bandsaw Blade Welding Machine , 25KVA Saw Blade Welder
Features Gallery Product Description Request A Quote
Features
Specifications
Name: CNC Flash Band Blade Welding Machine
Warranty: 12 Months
Condition: New
Power(w): 25kva
Motor Type: AC Motor
Machine Type: Welding Manipulator
High Light:

25KVA bandsaw blade welding machine

,

25KVA saw blade welder

,

horizontal bandsaw blade welding machine

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: UZN-25
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Product Description

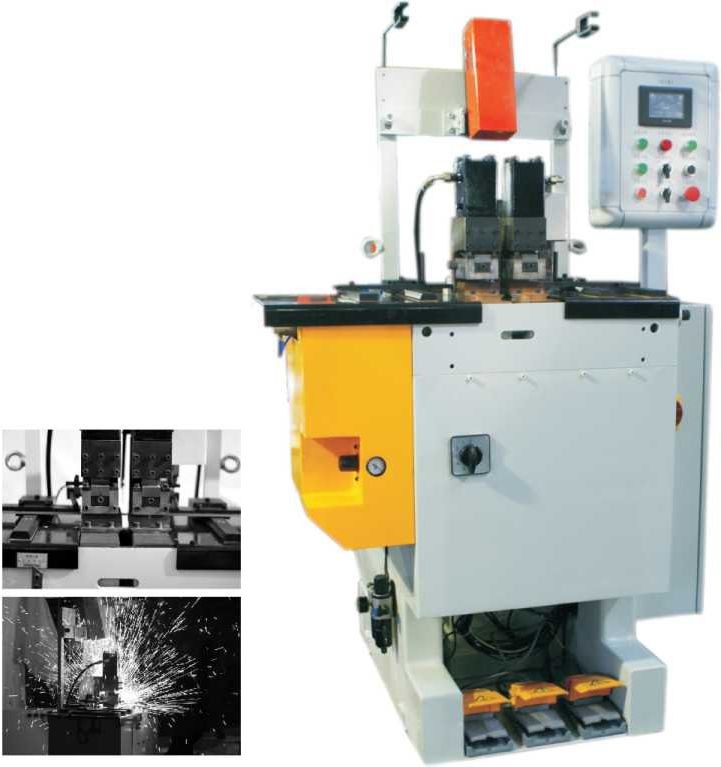

CNC Flash Band Blade Welding Machine



Product information



It is mainly used for welding of bimetallic band saw blades. The products are suitable for all kinds of ferrous metal strip materials with the maximum welding width of 80mm and thickness of 1.6mm.



Widely used in steel belt production and sales enterprises such as band saw blade and band knife.











The basic parameters unit Specifications
UZN-25
The welding specifications
Bimetallic saw band mm 19-80.
Ordinary steel belt mm 19-80.
Rated RongTong kVA 25
Line load continuity rate % 25
Maximum overhead forging force KN 14
Type of welding table Horizontal
The clamping way Hydraulic
Upsetting way Pneumatic
Tempering temperature adjustment mode Automatic
Product dimensions mm 1200X1100X1900
Machine net weight kg 650
