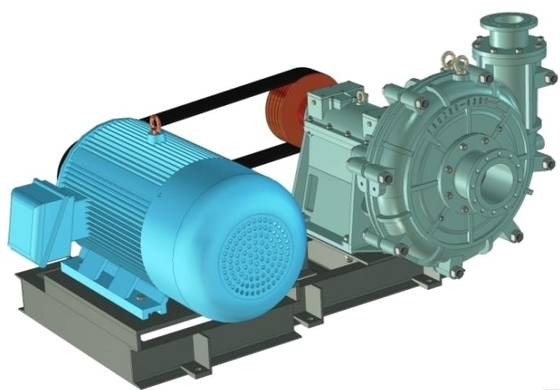

150ZBD-530 Slag Slurry Pump
iI is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 300.0 | 43.8 | 64.0 | 226.5 | 25.0 | 62.2 | |||||
| 150ZBD-530 | 980 | 500.0 | 40.0 | 74.0 | 90 ~ 132 | 740 | 377.6 | 22.8 | 71.9 | 45-55 |
| 600.0 | 37.2 | 74.8 | 453.1 | 21.2 | 72.7 | |||||
| 280.6 | 38.3 | 63.6 | 211.9 | 21.9 | 61.8 | |||||
| 150ZBD-530A | 980 | 467.7 | 35.0 | 73.5 | 75 -110 | 740 | 353.2 | 20.0 | 71.4 | 37-45 |
| 561.2 | 32.6 | 74.3 | 423.8 | 18.6 | 72.2 | |||||
| 259.8 | 32.9 | 63.1 | 196.2 | 18.7 | 61.3 | |||||
| 150ZBD-530B | 980 | 433.0 | 30.0 | 72.9 | 75-90 | 740 | 327.0 | 17.1 | 70.9 | 30-37 |
| 519.6 | 27.9 | 73.7 | 392.4 | 15.9 | 71.6 |
FAQ
A: Trial sample is ok.
A: We are a manufacturer.
A: Yes, we can do OEM for you.
A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.
A: 1 year
