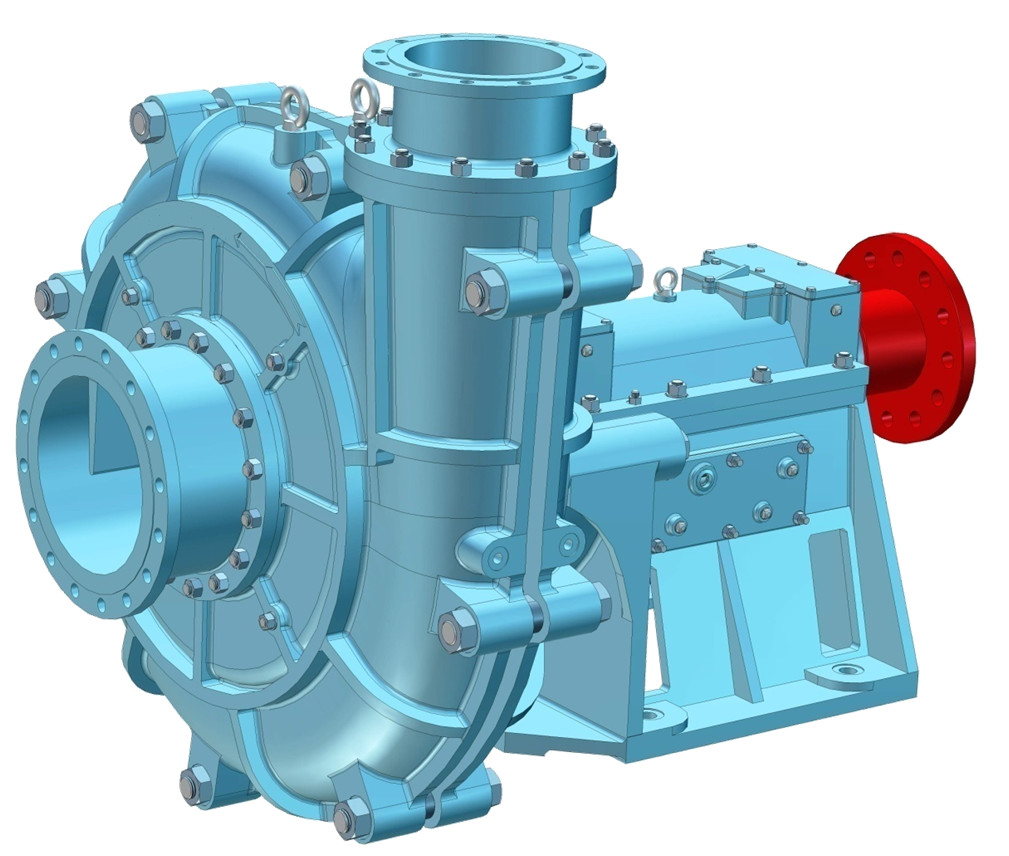

200ZBD-630 Slag Slurry Pump

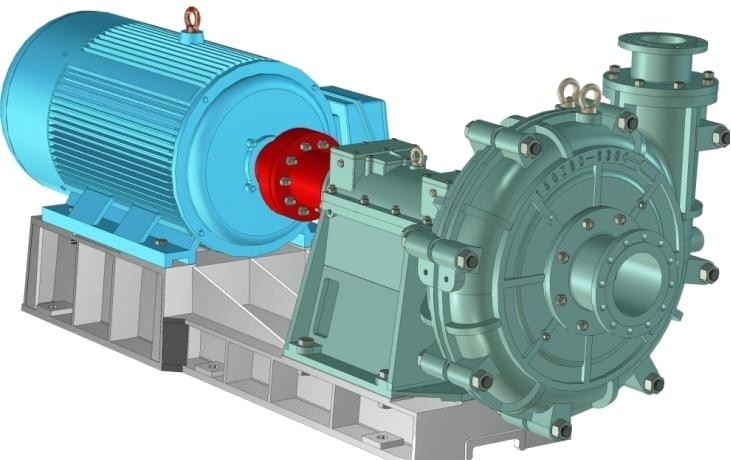

It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
The wet parts are made up of the specific metallic of anti-abrasion and corrosion awarded a second prize by provincial government
The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
The reliable design grants the tremendous improvement in MTBF.
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 200ZBD-630 | 980 | 800.0 | 62.0 | 74.6 | 220~ 280 | 740 | 604.1 | 35.4 | 72.6 | 90 ~ 132 |
| 960.0 | 57.9 | 75.3 | 724.9 | 33.0 | 73.3 | |||||
| 456.2 | 60.5 | 64.2 | 344.5 | 34.5 | 62.5 | |||||
| 200ZBD-630A | 980 | 760.3 | 56.0 | 74.2 | 200~ 250 | 740 | 574.1 | 31.9 | 72.3 | 90-110 |
| 912.4 | 52.3 | 74.9 | 688.9 | 29.8 | 72.9 | |||||
| 431.1 | 54.0 | 63.8 | 325.5 | 30.8 | 62.1 | |||||
| 200ZBD-630B | 980 | 718.4 | 50.0 | 73.8 | 160~200 | 740 | 542.5 | 28.5 | 71.9 | 75-90 |
| 862.1 | 46.7 | 74.5 | 651.0 | 26.6 | 72.5 | |||||
| 408.9 | 48.6 | 63.5 | 308.8 | 27.7 | 61.8 | |||||
| 200ZBD-630C | 980 | 681.6 | 45.0 | 73.5 | 160~185 | 740 | 514.6 | 25.7 | 71.5 | 55-75 |
| 817.9 | 42.0 | 74.2 | 617.6 | 24.0 | 72.1 |
Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.
