820r/Min Centrifugal Slurry Pump , D125mm Cement Slurry Pump 125NJ-740

1 Set
MOQ
Negotiable
Price
820r/Min Centrifugal Slurry Pump , D125mm Cement Slurry Pump 125NJ-740
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Water,mining Tailing Slurries
Application: Sewage,mining
Structure: Single-stage Pump
Warranty: 12 Months
Type: Horizontal
High Light:

820r/min centrifugal slurry pump

,

D125mm centrifugal slurry pump

,

D125mm cement slurry pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 125NJ-740
Payment & Shipping Terms
Packaging Details: Standarsd export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

125NJ-740 Thick Slurry Pump



• Adopt the latest modern design theory and optimization design method (integrated application of CAD, CFD, CAPP and other technologies) to ensure excellent hydraulic performance, high efficiency and low wear;

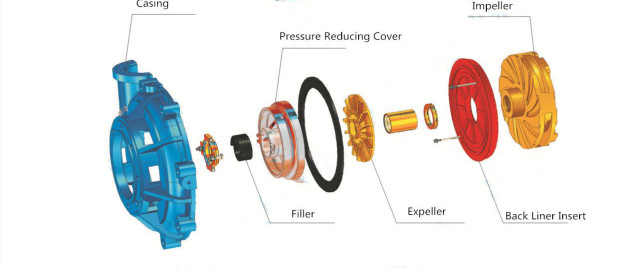

• Structural design, compared with the ordinary slurry pump, the inlet diameter of the pump is larger, the number of impeller blades is reduced, and the inducer is added to ensure that the pump has excellent cavitation performance and the ability to transport high viscosity and high concentration slurry;

• Wide flow channel, good anti-blocking performance;

• Adopt impeller packing combination seal or mechanical seal to ensure no leakage of slag slurry;

• The application of reliability design technology ensures that the mean time between failure (MTBF) of the whole machine is greatly improved;

• The metric bearing is lubricated with thin oil, and the lubrication and cooling system is reasonably set to ensure that the bearing runs at the best temperature;

• Pump inlet and outlet flanges are produced according to the current national standard, which is convenient for pipeline installation;

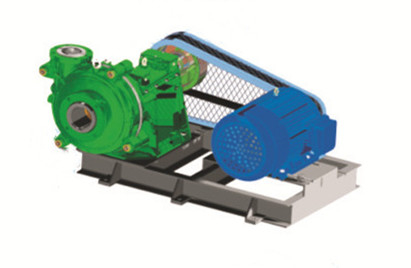

• The pump mainly uses direct transmission mode, with high transmission efficiency.According to the needs of users can also use the belt transmission mode;

The flow parts are made of special alloy which won the second prize of provincial science and technology achievement, and have good wear and corrosion resistance.



Performance Parameter of NJ Pump





   Type

Rotate Speed
n
r/min
Flow
Q
m3/h
Lift
H
m
Efficiency
η
%
Shaft Power
Pa
kw
NPSH       Motor Drive Type    Diameter
Power
kw
Poles Number
P
Outlet
mm
Inlet
mm































125NJ-740

980 228.0 88.0 53.9 101.4 1.7 185     6 Isokinetic  125  203
380.0 80.0 61.2 135.3 2.2 200
456.0 74.4 61.6 150.0 3.0 250
940 218.7 81.0 53.6 89.9 1.6 160 Shifting
364.5 73.6 60.9 120.0 2.0 200
437.4 68.5 61.3 133.0 2.8 220
900 209.4 74.2 53.4 79.3 1.4 132
349.0 67.5 60.6 105.8 1.9 160
418.8 62.7 61.0 117.3 2.5 200
860 200.1 67.8 53.1 69.6 1.3 132
333.5 61.6 60.3 92.8 1.7 160
400.2 57.3 60.7 102.9 2.3 185
820 190.8 61.6 52.8 60.6 1.2 110
318.0 56.0 60.0 80.9 1.5 132
381.6 52.1 60.3 89.7 2.1 160
780 181.5 55.7 52.5 52.5 1.1 90
302.4 50.7 59.6 70.0 1.4 110
362.9 47.1 60.0 77.7 1.9 132
740 172.2 50.2 52.2 45.1 1.0 75     8 Isokinetic
286.9 45.6 59.2 60.2 1.3 90
344.3 42.4 59.6 66.7 1.7 110
590 137.3 31.9 50.8 23.5 0.6      10
228.8 29.0 57.7 31.3 0.8 45
  217.8 80.3 53.6 88.8 1.7 160



125NJ-740A

980 363.0 73.0 60.9 118.6 2.1 200     6 Isokinetic
435.6 67.9 61.3 131.5 2.8 220
  164.5 45.8 51.9 39.5 1.0 75     8
740 274.1 41.6 58.9 52.7 1.2 90
  328.9 38.7 59.3 58.5 1.6 110



125NJ-740B

980 207.1 72.6 53.3 76.8 1.7 132     6 Isokinetic
345.2 66.0 60.5 102.5 2.0 160
414.2 61.4 60.9 113.7 2.5 200
740 156.4 41.4 51.6 34.2 1.0       8
260.6 37.6 58.6 45.6 1.1 75
312.8 35.0 59.0 50.6 1.4 90





125NJ-740C

980 197.5 66.0 53.0 67.0 1.7 110     6 Isokinetic
329.1 60.0 60.2 89.4 1.9 132
394.9 55.8 60.6 99.1 2.4 160
740 149.1 37.6 51.3 29.8 1.0       8
248.5 34.2 58.2 39.8 1.1 55
298.2 31.8 58.6 44.1 1.4 75


Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.
