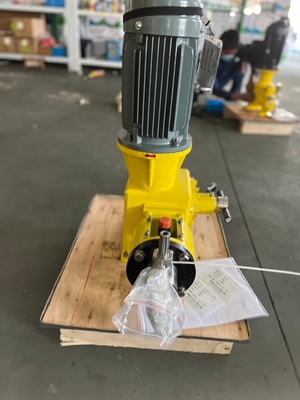

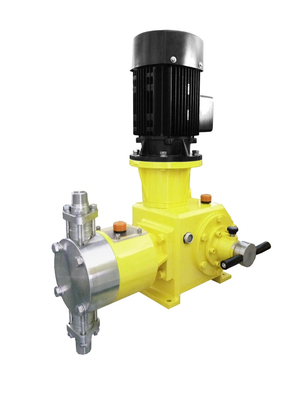

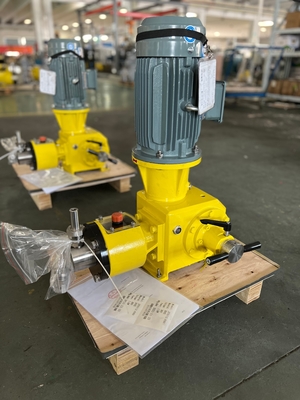

JX Series Metering Centrifugal Slurry Pump Plunger Type

1 Set
MOQ
Negotiable
Price
JX Series Metering Centrifugal Slurry Pump Plunger Type
Features Gallery Product Description Request A Quote
Features
Specifications
Max Flow Rate: 940L/h
Max Discharge Pressure: 50Mpa
Max Suction Lift: 2.5m Water Column
Highest Elevation: 1000m
High Light:

Metering Centrifugal Slurry Pump

,

Plunger Type Centrifugal Slurry Pump

,

Chemical Metering Pump 940L/h
Basic Infomation
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Model Number: JX Series
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 6-8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/month
Product Description

JX Series Plunger-Type Metering Pump, Centrifugal Pump



Main Performance Parameters

  • Max flow rate: 940L/h
  • Max discharge pressure: 50Mpa
  • Turndown ratio 10:1, steady-state accuracy ± 1%
  • Max suction lift: 2.5m water column
  • Medium temperature: -10℃--100℃
  • The highest ambient temperature: +40C, the highest elevation: 1000m



Major Features

  • Hard and compact design, small pump head, and optimized connection.
  • Plunder contacts medium directly with high volumetric efficiency. The transmission loss is lower at high pressure.
  • Variable eccentric structural adjustment ensures smooth fluctuations in flow pulsation; new machine enables the result more accurate and reasonable.
  • It is suitable for conveying non-solid particles media, high viscosity media, in high pressure environment; It is not recommended for corrosive pulp and flammable, explosive, dangerous chemicals!
  • Adopt graphite fiber with superior sealing performance and long service life.



Control Mode

  • Power supply: 380V/220V-50Hz/60Hz/three-phase/single-phase
  • Variable frequency controller receives the external control signal and adjusts the stroke speed, input signal: 4-20 mA analog signal
  • Motor controller determines three-phase motor by "on/off" mode, adjusts the output flow



Main Applications

It is widely used infields such as chemical, petrochemical, electricity and metallurgy etc.In particular,it is very popular in fields with high viscosity, high pressure and high temperature.





Main Components of the Fluid End

Fluid End Pump Head Valve body,valve seat Valve ball Plunger Tamping Seal ring
304SS 304SS 304SS 304SS/Zirconia 304+Ceramic Fluororubber Fluororubber/PTFE
316SS 316SS 316SS 304SS/Zirconia 316+Ceramis Fluororubber Fluororubber/PTFE





Flow/Pressure

Code Max flow
(L/h)		 Max pressure (Mpa) Plunger diamater
(mm)		 Stroke frequency
(min-1)		 Stroke length
(mm)		 Motor power
(kW)
JX940/0.9 JX940/0.7
JX940/0.5		 940 0.9
0.7
0.5		 90 130 20 1.5
1.1
0.75
JX840/1.1 JX840/0.8 JX840/0.5 840 1.1
0.8
0.5		 85 1.5
1.1
0.75
JX740/1.2
JX740/0.9 JX740/0.6		 740 1.2
0.9
0.6		 80.0 1.5
1.1
0.75
JX650/1.4 JX650/1.0 JX650/0.7 650 1.4
1.0
0.7		 75 1.5
1.1
0.75
JX570/1.6
JX570/1.1
JX570/0.8		 570 1.6
1.1
0.8		 70.0 1.5
1.1
0.75
JX490/1.8 JX490/1.3
JX490/0.9		 490 1.8
1.3
0.9		 65 1.5
1.1
0.75
JX410/2.1 JX410/1.6 JX410/1.1 410 2.1
1.6
1.1		 60 1.5
1.1
0.75
JX360/2.4 JX360/1.8 JX360/1.2 360 2.4
1.8
1.2		 56 1.5
1.1
0.75
JX280/3.1 JX280/2.2 JX280/1.5 280 3.1
2.2
1.5		 50 1.5
1.1
0.75
JX230/3.8 JX230/2.8 JX230/1.9 230 3.8
2.0
1.9		 45 1.5
1.1
0.75
JX180/4.8 JX180/3.5 JX180/2.4 180 4.8
3.5
2.4		 40 1.5
1.1
0.75
JX140/6.2
JX140/4.6 JX140/3.1		 140 6.2
4.6
3.1		 35.0 1.5
1.1
0.75
JX100/8.5 JX100/6.2
JX100/4.2		 100 8.5
6.2
4.2		 30 1.5
1.1
0.75
JX70/12.0 JX70/8.8
JX70/6.0		 70 12.0
8.8
6.0		 25 1.5
1.1
0.75
JX55/15.8 JX55/11.7
JX55/8.0		 55 15.8
11.7
8.0		 22 1.5
1.1
0.75
JX45/19.0 JX45/13.9 JX45/9.5 45 19.0
13.9
9.5		 20 1.5
1.1
0.75
JX35/23.5 JX35/17.0 JX35/12.0 35 23.5
17.0
12.0		 18 1.5
1.1
0.75
JX25/34.0 JX25/25.0 JX25/17.0 25 34.0
25.0
17.0		 15 1.5
1.1
0.75
JX15/50.0 JX15/36.0 JX15/25.0 15 50.0
36.0
25.0		 12 1.5
1.1
0.75
JX10/50.0 JX10/36.0
JX10/25.0		 10 50.0
36.0
25.0		 10 1.5
1.1
0.75



Fluid End

Code Material
S 304SS
L 316SS



Interface

Code Description JX10-70 JX100-410 JX490-940
P NPT thread 1/2''M 1/2''F 1''M
F Flange interface DN15 DN20 DN25
K Tube fittings DN15 ---- ----
X Special interface Please consult Hanlin Industrial

Note: the red parameters are standard configuration.



Electric Motor

Code Description
1 Three-phase motor 220/380V, 50Hz,1440rpm, IP55/F
2 Single-phase motor 220V, 50Hz, 1440rpm, IP55/F
3 Three-phase explosion-proof motor 380V, 50Hz, 1440rpm,
d IP55/F, dHBT4
4 Variable-frequency three-phase motor 220/380V, 50Hz,
4, 1440rpm, IP55/F, IC416
5 The motor is not provided with the pump, Retain the IEC interface
6 Consult Hanlin Indastrial for other motors

When selectingthe variable-frequency motor, its power should be at greater level.



JX Series Dimensions



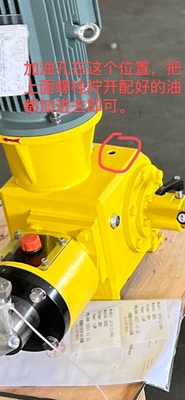

JX Series Metering Centrifugal Slurry Pump Plunger Type 0

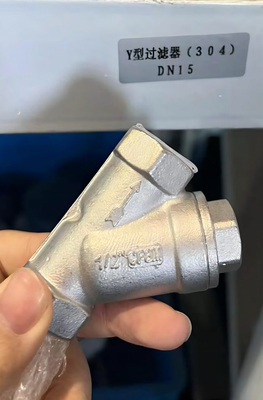

JX Series Metering Centrifugal Slurry Pump Plunger Type 1



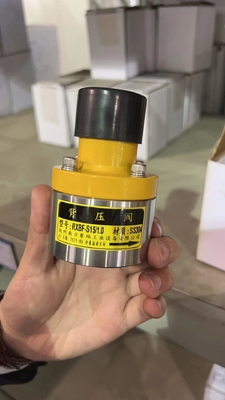

JX Series Metering Centrifugal Slurry Pump Plunger Type 2
