Wear Resistant 780rpm Submersible Mud Pump For Mining 150NJ-630
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Mud Pump
Oem: Applicable
Condition: New
Power: Hydraulic
Application: In Metallurgy,mining,coal,chemical Industry Field
Standard Or Nonstandard: ISO9001:2000
High Light:

780rpm submersible mud pump

,

wear resistant submersible mud pump

,

mining slurry pumps

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 150NJ-630
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

150NJ-630 Thick Slurry Pump



• Adopt impeller packing combination seal or mechanical seal to ensure no leakage of slag slurry;

• The application of reliability design technology ensures that the mean time between failure (MTBF) of the whole machine is greatly improved;

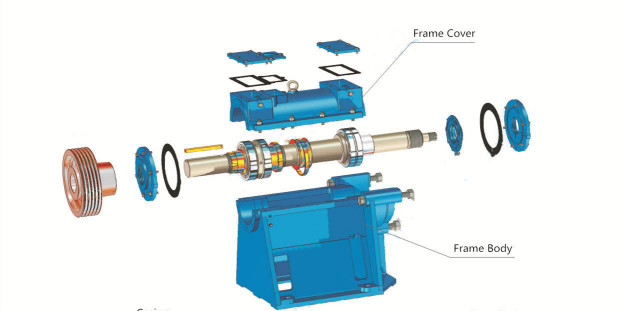

• The metric bearing is lubricated with thin oil, and the lubrication and cooling system is reasonably set to ensure that the bearing runs at the best temperature;

• Pump inlet and outlet flanges are produced according to the current national standard, which is convenient for pipeline installation;

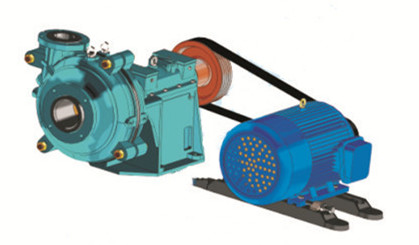

• The pump mainly uses direct transmission mode, with high transmission efficiency.According to the needs of users can also use the belt transmission mode;

• Wide flow channel, good anti-blocking performance;

• Structural design, compared with the ordinary slurry pump, the inlet diameter of the pump is larger, the number of impeller blades is reduced, and the inducer is added to ensure that the pump has excellent cavitation performance and the ability to transport high viscosity and high concentration slurry;

• Adopt the latest modern design theory and optimization design method (integrated application of CAD, CFD, CAPP and other technologies) to ensure excellent hydraulic performance, high efficiency and low wear;





                                                 Performance Parameter of NJ Pump



Type Rotate Speed
n
r/min
Flow
Q
m3/h
Lift
H
m
Efficiency
η
%
Shaft Power
Pa
kw
NPSH          Motor Drive Type      Diameter
Power
kw
Poles Number
P
Outlet
mm
Inlet
mm
150NJ-630 980 300.0 57.2 52.0 89.9 2.2 132      6 Isokinetic 152 254
500.0 53.0 69.3 104.2 2.6 160
600.0 48.0 70.7 111.0 3.6 200
940 287.8 52.6 51.8 79.7 2.0 132 Shifting
479.6 48.8 69.0 92.3 2.4 160
575.5 44.2 70.4 98.3 3.3 185
900 275.5 48.2 51.6 70.2 1.9 110
459.2 44.7 68.7 81.4 2.2 132
551.0 40.5 70.1 86.7 3.0 160
860 263.3 44.0 51.3 61.6 1.7 90
438.8 40.8 68.4 71.3 2.0 110
526.5 37.0 69.8 76.0 2.8 132
820 251.0 40.0 51.1 53.6 1.6 75
418.4 37.1 68.1 62.1 1.8 90
502.0 33.6 69.4 66.2 2.5 110
780 238.8 36.2 50.8 46.4 1.4 75
398.0 33.6 67.7 53.8 1.6 90
477.6 30.4 69.1 57.3 2.3 110
740 226.5 32.6 50.5 39.8 1.3 55      8 Isokinetic 152 254
377.6 30.2 67.3 46.1 1.5 75
453.1 27.4 68.7 49.2 2.1 90
150NJ-630A 980 279.5 49.6 51.6 73.2 2.2 110      6 Isokinetic
465.8 46.0 68.8 84.8 2.5 132
559.0 41.7 70.2 90.4 3.2 160
740 211.0 28.3 50.2 32.4 1.3 45      8
351.7 26.2 66.9 37.6 1.4 55
422.1 23.8 68.2 40.0 1.8 75
150NJ-630B 980 260.6 43.2 51.3 59.8 2.2 90      6 Isokinetic
434.4 40.0 68.3 69.3 2.4 110
521.2 36.2 69.7 73.8 2.9 132
740 196.8 24.6 49.8 26.5 1.3 45      8
328.0 22.8 66.4 30.7 1.4 55
393.6 20.7 67.7 32.7 1.7



Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.
