No Leakage Mud Slurry Pump , 250kw Sludge Dewatering Pump 200NJ-760

1 Set
MOQ
Negotiable
Price
No Leakage Mud Slurry Pump , 250kw Sludge Dewatering Pump 200NJ-760
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Mud Slurry Pump
Type: Mud Pump
Power: 250kw
Feature: Mud Suction Pump
Condition: New
Oem: Applicable
High Light:

250kw mud slurry pump

,

no leakage mud slurry pump

,

250kw sludge dewatering pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 200NJ-760
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

200NJ-760 Thick Slurry Pump



• The application of reliability design technology ensures that the mean time between failure (MTBF) of the whole machine is greatly improved;

• The metric bearing is lubricated with thin oil, and the lubrication and cooling system is reasonably set to ensure that the bearing runs at the best temperature;

• Pump inlet and outlet flanges are produced according to the current national standard, which is convenient for pipeline installation;

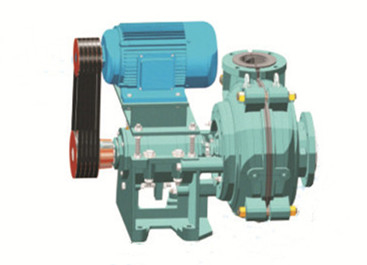

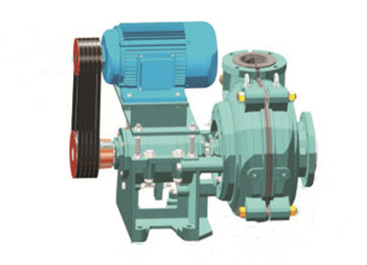

• The pump mainly uses direct transmission mode, with high transmission efficiency.According to the needs of users can also use the belt transmission mode;

• Wide flow channel, good anti-blocking performance;

• Adopt impeller packing combination seal or mechanical seal to ensure no leakage of slag slurry;

• Adopt the latest modern design theory and optimization design method (integrated application of CAD, CFD, CAPP and other technologies) to ensure excellent hydraulic performance, high efficiency and low wear;

• Structural design, compared with the ordinary slurry pump, the inlet diameter of the pump is larger, the number of impeller blades is reduced, and the inducer is added to ensure that the pump has excellent cavitation performance and the ability to transport high viscosity and high concentration slurry;





                                                  Performance Parameter of NJ Pump





    Type

Rotate Speed
n
r/min
Flow
Q
m3/h
Lift
H
m
Efficiency
η
%
Shaft Power
Pa
kw
NPSH         Motor Drive Type     Diameter
Power
kw
Poles Number
P
Outlet
mm
Inlet
mm





























200NJ-760

980 540.0 88.0 63.2 204.8 2.7 355



































      6

Isokinetic    200    305
900.0 80.0 73.7 266.1 5.6 400
1080.0 73.0 76.3 281.5 6.7 450
          500
940 518.0 81.0 62.9 181.5 2.5 315
863.3 73.6 73.4 235.8 5.2 355
1035.9 67.2 76.0 249.4 6.2 400
          450
900 495.9 74.2 62.7 159.9 2.3 280
826.5 67.5 73.1 207.8 4.7 315
991.8 61.6 75.7 219.8 5.7 355
          400
860 473.9 67.8 62.4 140.2 2.1 250
789.8 61.6 72.8 182.1 4.3 280
947.8 56.2 75.4 192.6 5.2 315
          355
820 451.8 61.6 62.1 122.1 1.9 200
753.1 56.0 72.5 158.6 3.9 250
903.7 51.1 75.0 167.7 4.7 280
            315
780 429.8 55.7 61.8 105.6 1.7 185
716.3 50.7 72.1 137.2 3.5 200
859.6 46.2 74.6 145.1 4.2 220
          250
740 407.8 50.2 61.5 90.6 1.6 160





      8

Isokinetic
679.6 45.6 71.7 117.7 3.2 185
815.5 41.6 74.3 124.5 3.8 200
          220
590 325.1 31.9 60.2 47.0 1.0 75



     10

541.8 29.0 70.1 61.0 2.0 90
  650.2 26.5 72.6 64.5 2.4 110









200NJ-760A

980 515.8 80.3 62.9 179.3 2.5 315





      6

Isokinetic    305
859.7 73.0 73.4 233.0 5.4 355
1031.7 66.6 76.0 246.4 6.5 400
          450
740 389.5 45.8 61.2 79.3 1.4 132



      8

649.2 41.6 71.4 103.1 3.1 160
779.0 38.0 73.9 109.0 3.7 200









200NJ-760B

980 490.5 72.6 62.6 154.9 2.3 280





      6

Isokinetic
817.5 66.0 73.0 201.3 5.1 315
981.0 60.2 75.6 212.9 6.2 355
          400
740 370.4 41.4 60.9 68.5 1.3 110



      8

617.3 37.6 71.1 89.0 2.9 132
740.7 34.3 73.6 94.2 3.5 160









200NJ-760C

980 467.7 66.0 62.3 134.9 2.1 220





     6

Isokinetic
779.4 60.0 72.7 175.2 4.8 250
935.3 54.8 75.3 185.4 5.9 280
          315
740 353.1 37.6 60.6 59.7 3.5 110



     8

588.5 34.2 70.7 77.6 2.1 132
706.3 31.2 73.2 82.0 4.8 160



Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.



FAQ

  1. Q: What’ the MOQ?

           A: Trial sample is ok.



  1. Q: Are you factory or trading company?

     A: We are a manufacturer.



  1. Q: Can you accept to use our logo?

     A: Yes, we can do OEM for you.



  1. Q: How can I get the pump?

         A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.



  1. Q: What’s the warranty period?

     A: 1 year
