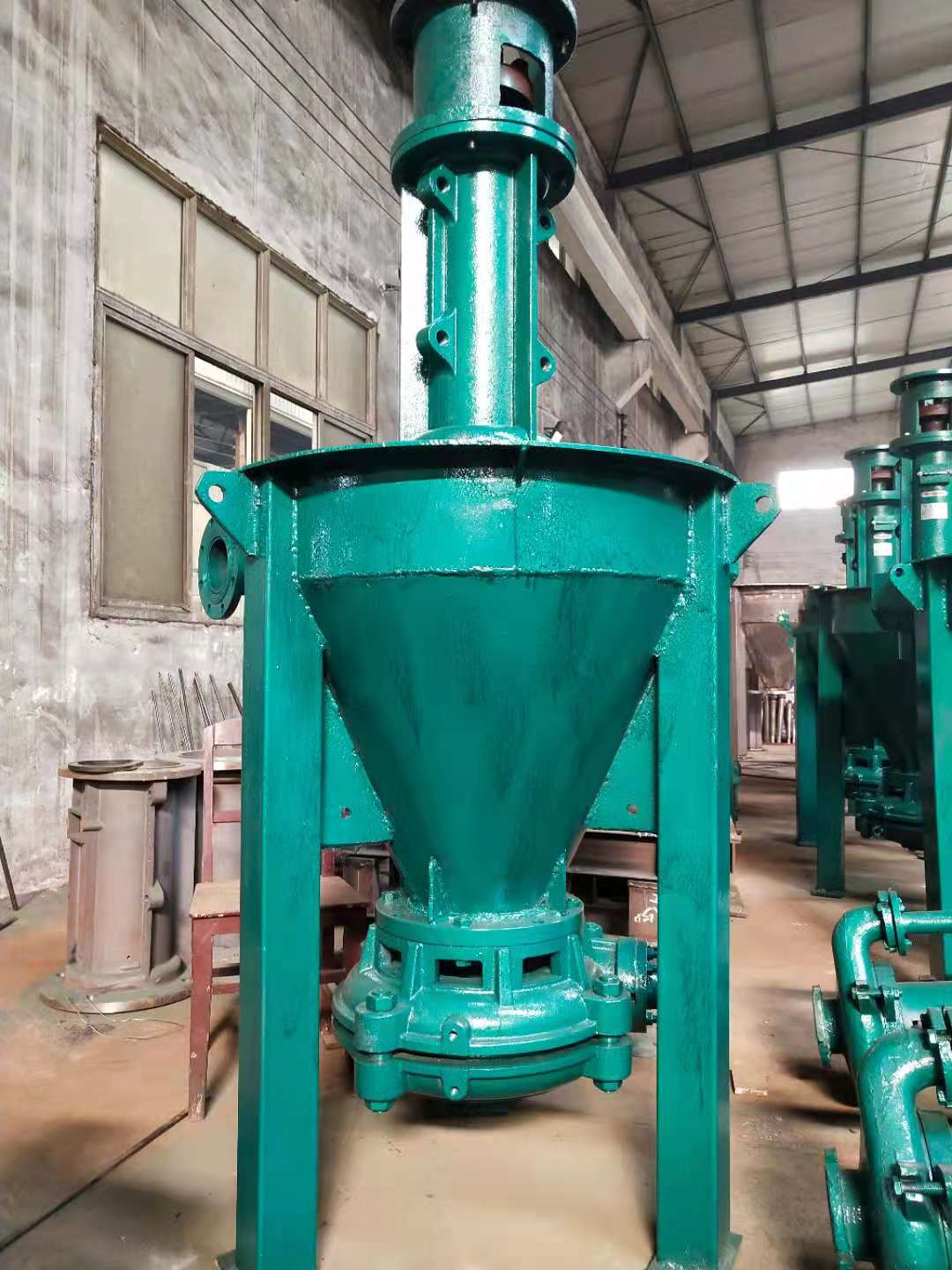

150S-PM Froth Slurry Pump
PM series froth pump has the characters of simple structure ,easy installation and high degree generalization.
Pump head:it is the same as that of ZBD,ZBB series slurry pump, with double pump shell structure.Pump body, cover,front guard plate etc are universal with ZBD,ZBB series of the same diameter slag slurry pump.According to the different conveying medium, the material of the flow part can choose metal,rubber or other non-metallic materials.

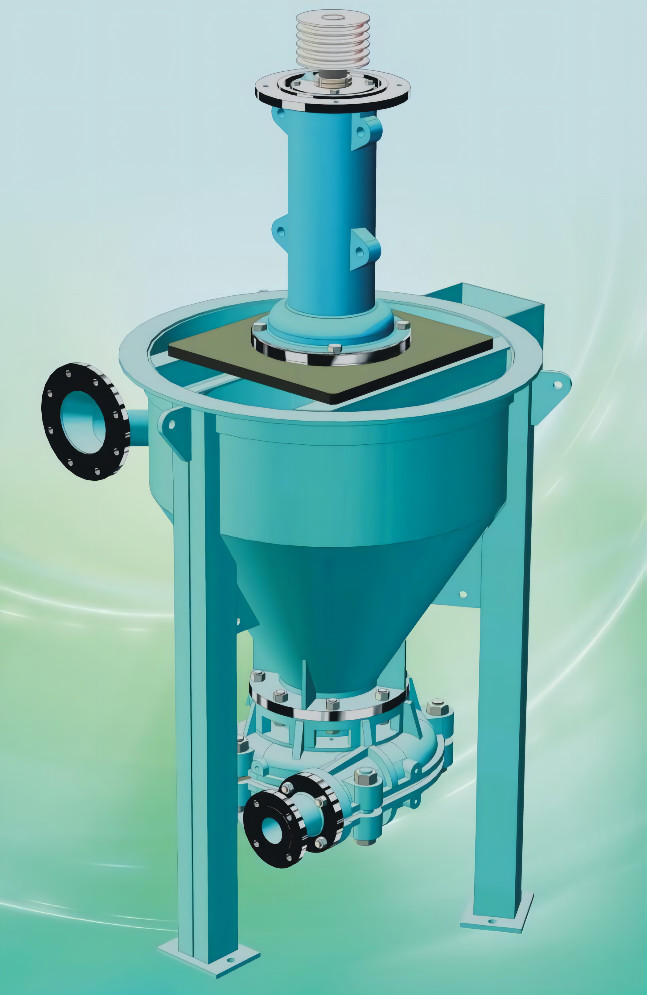

The material box adopts steel structure, with tangential inlet and overflow box will return the excess material to the material pool.Tangential inlet allows the slurry into the pump quickly, which can eliminate some of the foam.
Transmission parts: it is universal with LP, LPR series pump. According to the need of customers. Direct transmission or belt one can be choose.
| Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff n % |
Shaft Power Pa kw |
Driven Type | Motor Type | ||
| Type | Power kw | Voltage V | |||||||
| 150S-PM | 700 | 144.0 | 25.0 | 45.0 | 21.79 | BD |
Y280S-8 Y280M-8 |
37 45 |
380 |
| 240.0 | 22.8 | 52.0 | 28.66 | ||||||
| 288.0 | 21.2 | 52.6 | 31.62 | ||||||
| 660 | 135.8 | 22.2 | 44.7 | 18.39 | BD |
Y225M-6 Y250M-6 |
30 37 |
||
| 226.3 | 20.3 | 51.7 | 24.18 | ||||||
| 271.5 | 18.8 | 52.3 | 26.68 | ||||||
| 620 | 127.5 | 19.6 | 44.4 | 15.35 | BD |
Y250M-8 Y280S-8 |
30 37 |
||
| 212.6 | 17.9 | 51.3 | 20.19 | ||||||
| 255.1 | 16.6 | 51.9 | 22.27 | ||||||
| 580 | 119.3 | 17.2 | 44.1 | 12.66 | BD |
Y225M-8 Y250M-8 |
22 30 |
||
| 198.9 | 15.7 | 50.9 | 16.65 | ||||||
| 238.6 | 14.6 | 51.5 | 18.37 | ||||||
| 540 | 111.1 | 14.9 | 43.7 | 10.30 | BD |
Y225S-8 Y225M-8 |
18.5 22 |
||
| 185.1 | 13.6 | 50.5 | 13.55 | ||||||
| 222.2 | 12.6 | 51.1 | 14.94 | ||||||
| 500 | 102.9 | 12.8 | 43.3 | 8.25 | BD |
Y200L-8 Y225S-8 |
15 18.5 |
||
| 171.4 | 11.6 | 50.1 | 10.85 | ||||||
| 205.7 | 10.8 | 50.6 | 11.97 | ||||||
| 460 | 94.6 | 10.8 | 42.9 | 6.49 | BD |
Y180L-8 Y200L-8 |
11 15 |
||
| 157.7 | 9.8 | 49.6 | 8.53 | ||||||
| 189.3 | 9.2 | 50.2 | 9.41 | ||||||
| 420 | 86.4 | 9.0 | 42.5 | 4.99 | BD |
Y160L-8 Y180L-8 |
7.5 11 |
||
| 144.0 | 8.2 | 49.1 | 6.56 | ||||||
| 172.8 | 7.6 | 49.6 | 7.24 | ||||||
| 380 | 78.2 | 7.4 | 42.0 | 3.74 | BD |
Y160L-8 Y180L-8 |
7.5 11 |
||
| 130.3 | 6.7 | 48.5 | 4.92 | ||||||
| 156.3 | 6.2 | 49.0 | 5.42 | ||||||
| 340 | 69.9 | 5.9 | 41.4 | 2.71 | BD |
Y160M2-8 Y160L-8 |
5.5 7.5 |
||
| 116.6 | 5.4 | 47.8 | 3.57 | ||||||
| 139.9 | 5.0 | 48.4 | 3.94 | ||||||
PM Series vertical froth pump is widely used in metallurgy,mining,coal,chemical industry field.suitable for conveying abrasive or corrosive slurry containing foam.The foam in the slurry can be effectively eliminated. When the incoming material is insufficient, it sill can work normally. Especially suitable for all kinds flotation process flow. It is an ideal product for conveying foam slurry.
