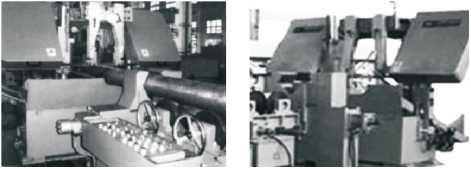

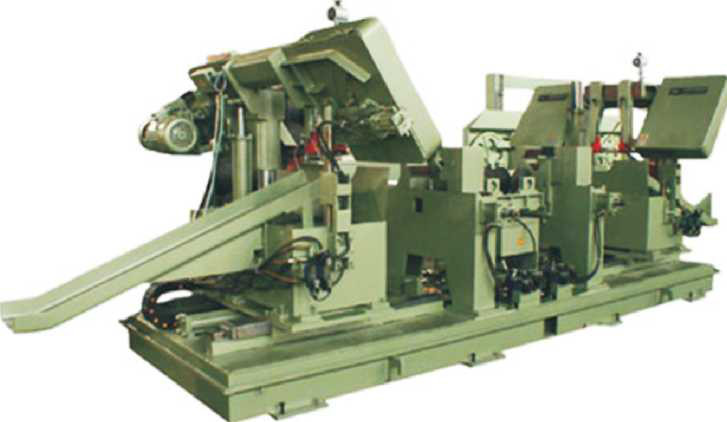

HN054 Axle Horizontal Double Head Saw

1 set
HN054 Axle Horizontal Double Head Saw
Features Gallery Product Description Request A Quote
Saw Machine: Axle Horizontal Double-head Saw
High Light:

Horizontal Double Head Saw


Axle Double Head Saw


HN054 Diamond Wire Saw Machine

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: HN054
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Product Description

Product application


This product is mainly used in the special sawing (aluminum) compound machine tool for shaft machining parts, such as train wheel and axle, which need both ends of sawing at the same time and punching the center hole.







  The basic parameters   unit   specifications
  Long shaft range of machining shaft   mm   1600-3000.
  Machining axle diameter range   mm   Φ100 -Φ280.
  Specification of band saw blade   mm   34 x1. 06 x4585
  Saw blade speed  m/min   20, 35, 50, 70
  Feed speed  m/min   Step-less speed regulation
  Main motor power   kw   4X2
  Hydraulic motor power   kw   4
  Cooling motor power   kw   0.09 X2
  Hydraulic tank rongxing   L   150
  Cooling water tank rongxing   L   70X2
  Maximum machining axle blank heavy star   kg   1500
  The perpendicularity of the end of a sawn   member facing its axis  mm/mm   0.4/100
  Single piece processing beat   min /   9.6
