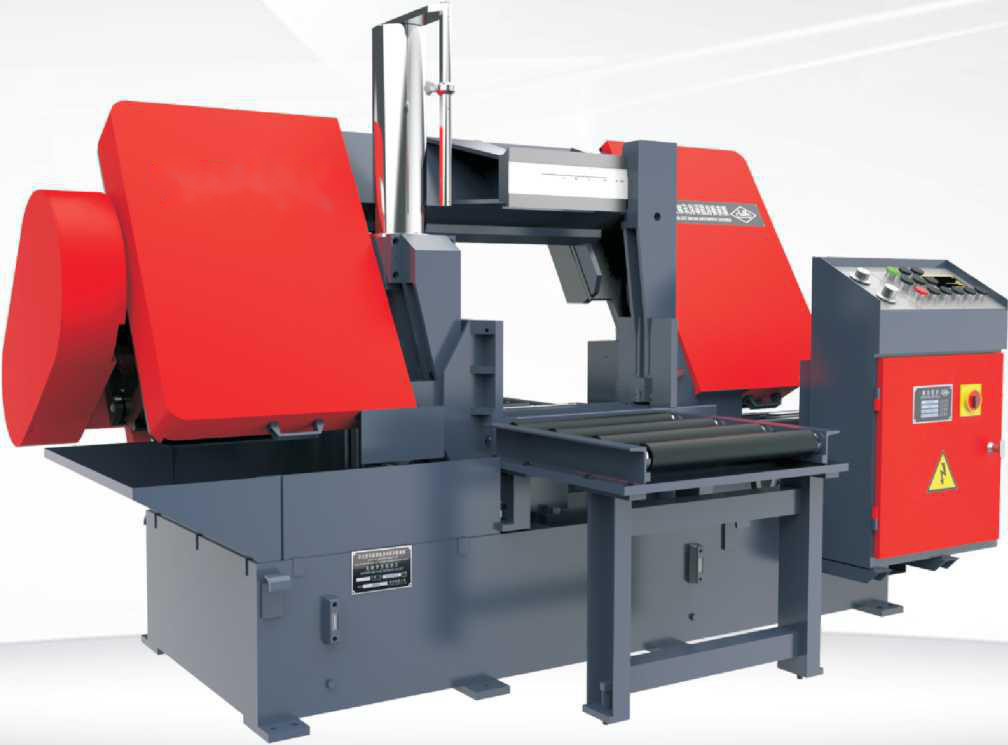

Double column Metal Cutting Band saw
The product is mainly used for mass cutting of ferrous metal materials. It is suitable for cutting all kinds of metal bar materials and profiles with the specification of 500mm and step processing. It can be equipped with beam forming device to cut small specification materials into beam Widely used in all walks of life of mechanical processing.
| Parameters | unit | Specifications | |
| G4250 | GZ4250 | ||
| Maximum saw specification | |||
| Round stock | mm | φ500 | φ500 |
| The material | mm | 500X550 | 500X550 |
| Minimum saw specification | mm | Φ50 | φ50 |
| Saw blade specifications | mm | 41 x1. 26 x4880 | 41 x1. 26 x5240 |
| Saw blade speed | m/min | 17, 35, 55, 75 | 17, 35, 55, 75 |
| Feed speed | mm/s | 0.2-5 (Hydraulic CVT) | 0.2-5 (Hydraulic CVT) |
| Feeding speed | mm/s | 35 | |
| Main motor power | kw | 5.5 | 5.5 |
| Hydraulic system pressure | MPa | 4.5 ~ 5.2 | 4.5 ~ 5.2 |
| Table height | mm | 660 | 660 |
| Maximum single feed length | mm | manual | 400 |
| Specification for clamping of bunching device | mm | 500x (50-150) | 500x (50-150) |
| Machine tool dimensions | mm | 3000X2560X1880 | 3000X2560X1880 |
| Machine net weight | kg | 2700 | 2800 |
