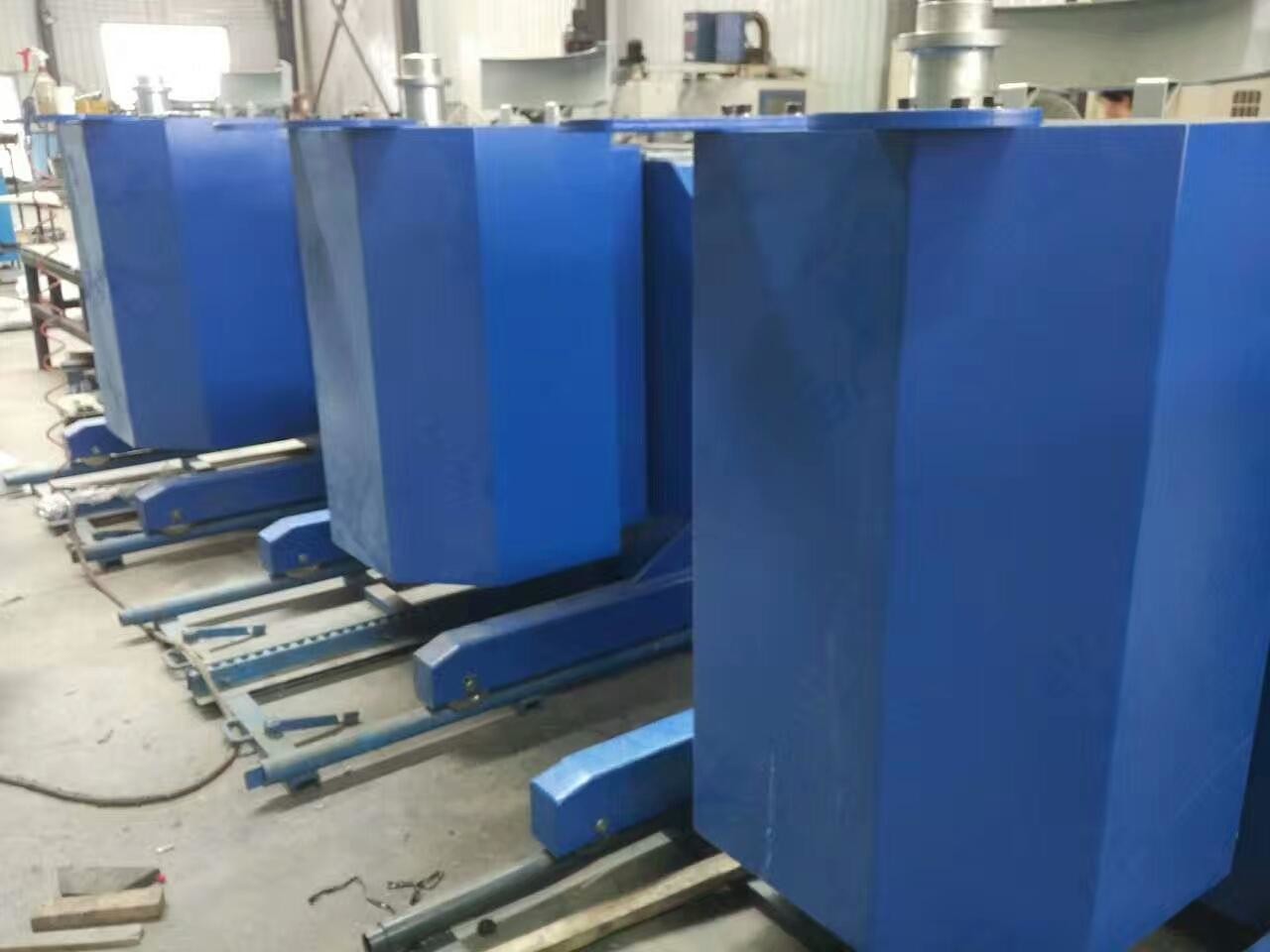

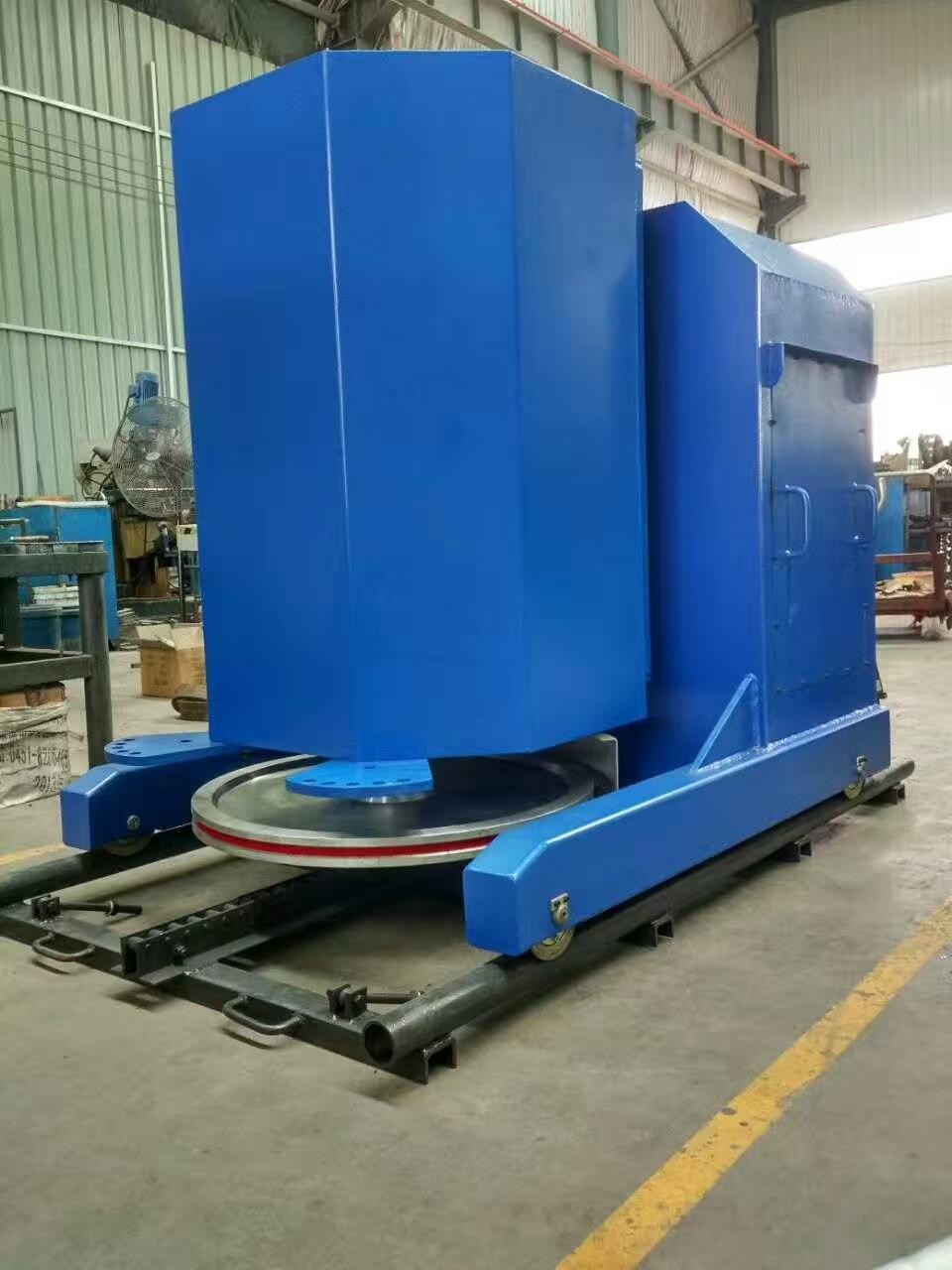

Wire Saw Machine-HL-37/45/55/75
HL-37/45/55/75 CNC Quarry Diamond Wire Saw Machine, 37KW~75KW, Granite/Marble/Stone Cutting Machine, 360° Rotation Angle

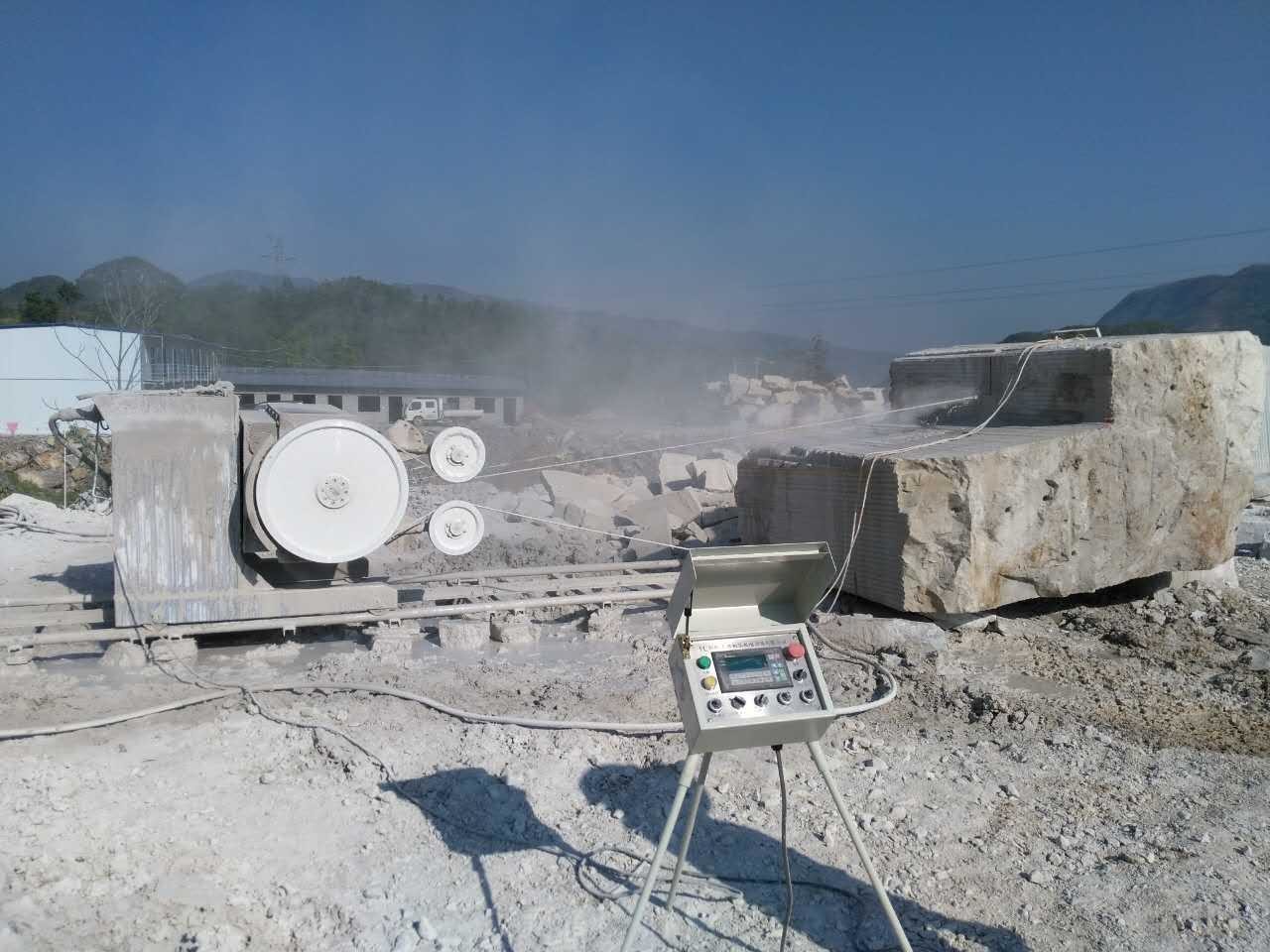

1. The main motor is powered by inverter to obtain the suitable wire speed according to the type of granite or marble. It is applicable for quarrying all kinds of granite and marble.
2. Apply vector inverter with invariable torque. Feed speed can be regulated automatically and smoothly as cutting force changes.
3. The control cabinet is placed separately within a side door. It is easy to do maintenance work.
4. Double dustproof and waterproof structure is used to protect the main motor. The guide poles and screw rod are isolated with dust and water by the flexible lags. Greatly extend the life of the machine.
5. Easily regulate the position and angle of driving flywheel by motors.
6. Display the real time of the parameters, such as the main motor's current, flywheel's speed.
7. The machine can be operated manually or automatically.
Performance Parameter of the Wire Saw Machines
Mode | HL-3745 | HL-55 | HL-75 |
Main motor(kw) | 3745kW | 55kW | 75kW |
Flywheel's diameter(mm) | Marble Φ800 mm, Granite Φ800 mm | ||
Guide pulley's diameter(mm) | 2xΦ380 mm | ||
Wire speed(m/s) | 0 ~ 40 m/s | ||
Walking motor(kw) | 1.5 KW | ||
Walking speed(m/h) | 0 ~ 30 m/h | ||
Adjustment distance(mm) | 450 mm | ||
Rotation angle | 360° Electric | ||
Max length of wire saw(m) | 50 m | 60 m | 80 m |
Net weight(t) | ~ 2300 kg | ~ 2500 kg | ~ 3400 kg |
