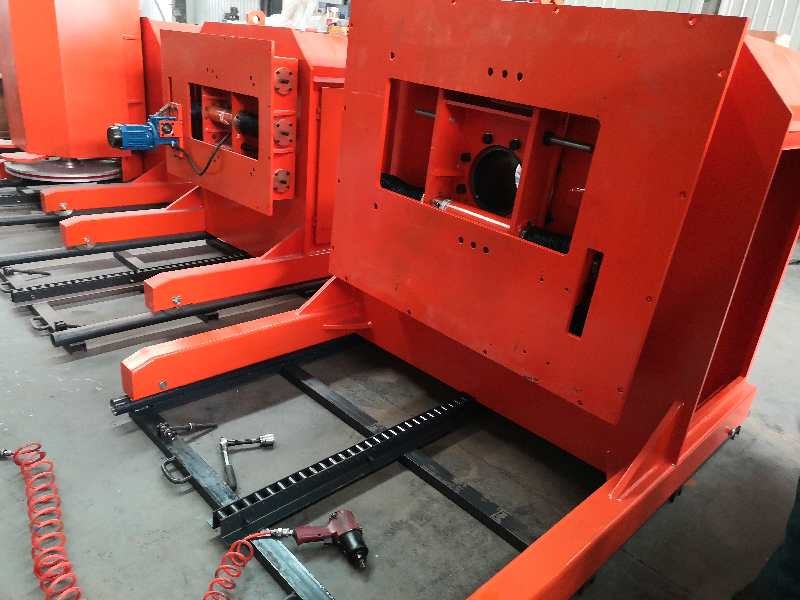

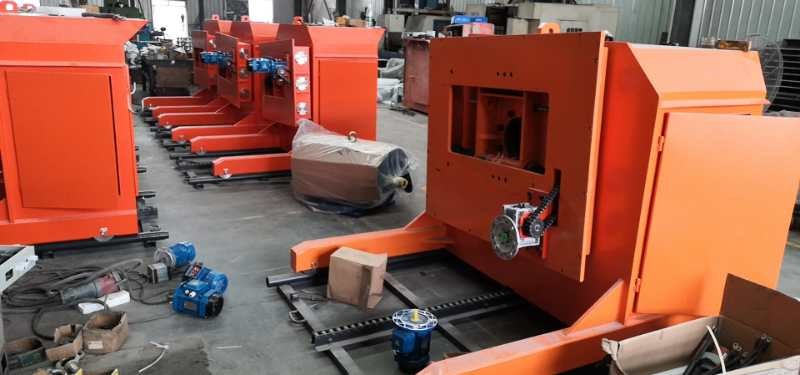

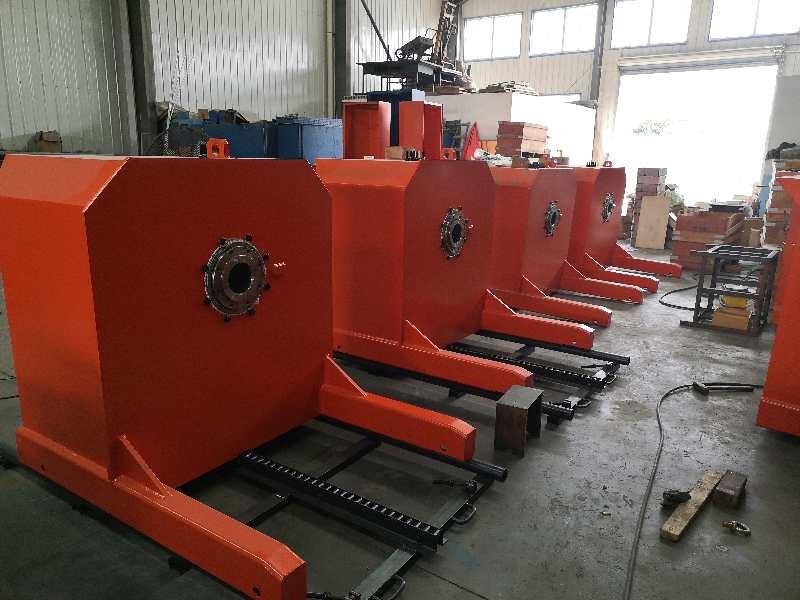

HL Wire Saw
CB - WS series diamond beads wire saw machine is independent development of a new generation of stone mining equipment, adopt frequency inverter control, has manual and automatic, rapid feed, feed, manual control, automatic speed, automatic fault alarm, and other functions, structure is simple, reliable, high degree of automation, convenient operation and maintenance, can be used for various types of granite and marble mining, is the necessary tools for stone mining.
| Mode | HL-3745 | HL-55 | HL-75 |
| Main motor(kw) | 3745KW | 55KW | 75KW |
| Flywheel’s diameter | Marble Φ800mm, Granite Φ800mm | ||
| Guide pulley diameter | 2*Φ380mm | ||
| Wire speed(m/s) | 0-40m/s | ||
| Walking motor(kw) | 1.5kw | ||
| Walking speed(m/h) | 0-30m/h | ||
| Adjustment distance(mm) | 450mm | ||
| Rotation angle | 360° Electric | ||
| Max length of wire saw(m) | 50m | 60m | 80m |
| Net weight(t) | ∽2300kg | ∽2500kg | ∽3400kg |
