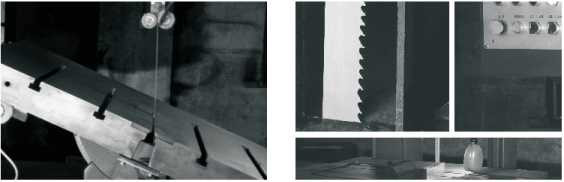

G5132 Vertical Plate band sawing machine
The product is mainly used for cutting all kinds of metal and non-metal materials. The product USES 3~27mm bimetal band saw blade as the cutting tool, suitable for 320mm high, 200kg heavy star work piece straight cutting and small bevel processing, can also be contour sawing. Widely used in all walks of life of mechanical processing.
| Parameters | unit | specifications |
| G5132 | ||
| Maximum saw specification | ||
| Height | mm | 320 |
| Deep throat | mm | 500 |
| Table size | mm | 700x800 |
| Table stroke | mm | 300 |
| Table load | kg | 200 |
| The table can be tilted | Left 10 on 30 | |
| Specification of band saw blade | mm | 27 x0. 9 x4250 |
| Saw blade speed | m/min | 15-90/180-1080 (step-less adjustable) |
| Feed speed | mm/min | 10-1000 (step-less adjustable) |
| Main motor power | kW | 2.2 |
| Machine tool dimensions | mm | 1245X1650X2400 |
| Machine net weight | kg | 1600 |
