G5328 2.2kw Vertical Band Saw , 64m/Min Metal And Wood Bandsaw

1 Set
MOQ
Negotiable
Price
G5328 2.2kw Vertical Band Saw , 64m/Min Metal And Wood Bandsaw
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: G5328 Block Vertical Cutting Metal Plate Band Saw
Warranty: 1 Year
Condition: New
Applicable Industries: Construction Works
Type: Band Saw
Service: Guarantee
High Light:

2.2kw vertical band saw

,

64m/min vertical band saw

,

64m/min metal and wood bandsaw

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: G5328
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Product Description

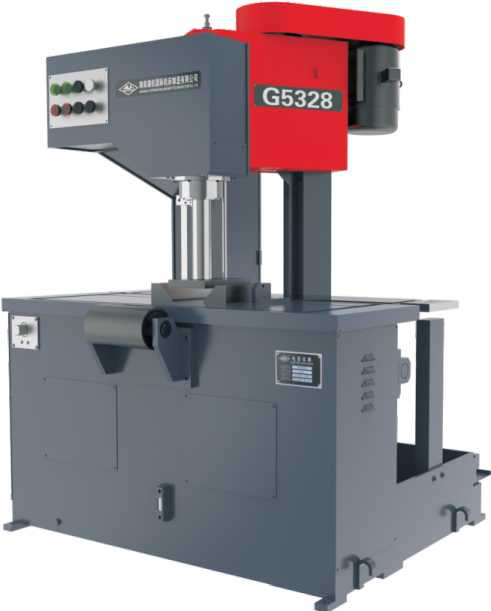

G5328 Block Vertical Cutting Metal Plate Band Saw



This product is a kind of small vertical band sawing machine with block, it has the sawing function of vertical band sawing machine and horizontal band sawing machine, especially suitable for sawing all kinds of black and non-ferrous metal, such as die blank, slab, bar material, etc., and can also sawing all kinds of special-shaped materials under special condition. It has the advantages of narrow mouth, material saving, energy saving, high cutting precision, easy operation and high production efficiency.





  Parameters   unit   Specifications
  G5328
  Maximum sawing thickness   mm   Φ180 (when the sawing length is greater than   300)
  Maximum sawing diameter   mm   Φ280 (when sawing length is less than 300)

  Maximum sawing length at one time mm

  500
  Maximum sawing width mm   300
  Band saw blade milling speed   m/min   25. 40; 64

  Specification of band saw blade

  (width x thickness X length) mm

  27 x0.9 x3350
  Band saw blade feed rate   mm/min   1-400 (stepless adjustable)
  Hydraulic system pressure Mpa   1.5
  Main motor power   kw   2.2
  Hydraulic motor power KW   0.75
  Cooling motor power   kw   0.125
  Machine tool external dimension mm   1320X1270X1715
  Machine net weight   kg   1200
