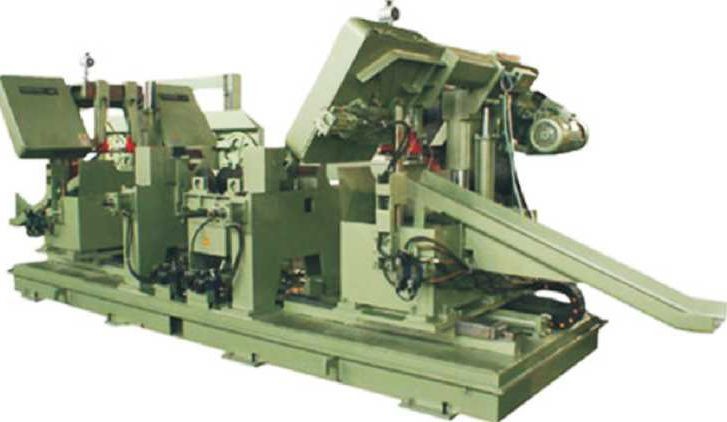

Axle Horizontal Double-Head Sawing Machine for Shaft Machining
Product application
This product is mainly used in the special sawing (aluminum) compound machine tool for shaft machining parts, such as train wheel and axle, which need both ends of sawing at the same time and punching the center hole.
| The basic parameters | unit | Specifications |
| HN054 | ||
| Long shaft range of machining shaft | mm | 1600-3000. |
| Machining axle diameter range | mm | Φ100 -Φ280. |
| Specification of band saw blade | mm | 34 x1. 06 x4585 |
| Saw blade speed | m/min | 20, 35, 50, 70 |
| Feed speed | m/min | Step-less speed regulation |
| Main motor power | kw | 4X2 |
| Hydraulic motor power | kw | 4 |
| Cooling motor power | kw | 0.09 X2 |
| Hydraulic tank rongxing | L | 150 |
| Cooling water tank rongxing | L | 70X2 |
| Maximum machining axle blank heavy star | kg | 1500 |
| The perpendicularity of the end of a sawn member facing its axis | mm/mm | 0.4/100 |
| Single piece processing beat | minmm/ | 9.6 |
