500mm Horizontal Band Sawing Machine , 5.2mpa Fully Automatic Bandsaw Machine

1 Set
500mm Horizontal Band Sawing Machine , 5.2mpa Fully Automatic Bandsaw Machine
Features Gallery Product Description Request A Quote
Model: G4250
Style: Horizontal
Application: Industrial Metal Cutting,wood Cutting
Name: Band Saw Machine
Weight (kg): 2700
Rated Power: 5.5kw
High Light:

5.2mpa horizontal band sawing machine


500mm horizontal band sawing machine


5.2mpa fully automatic bandsaw machine

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: G4250
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Product Description

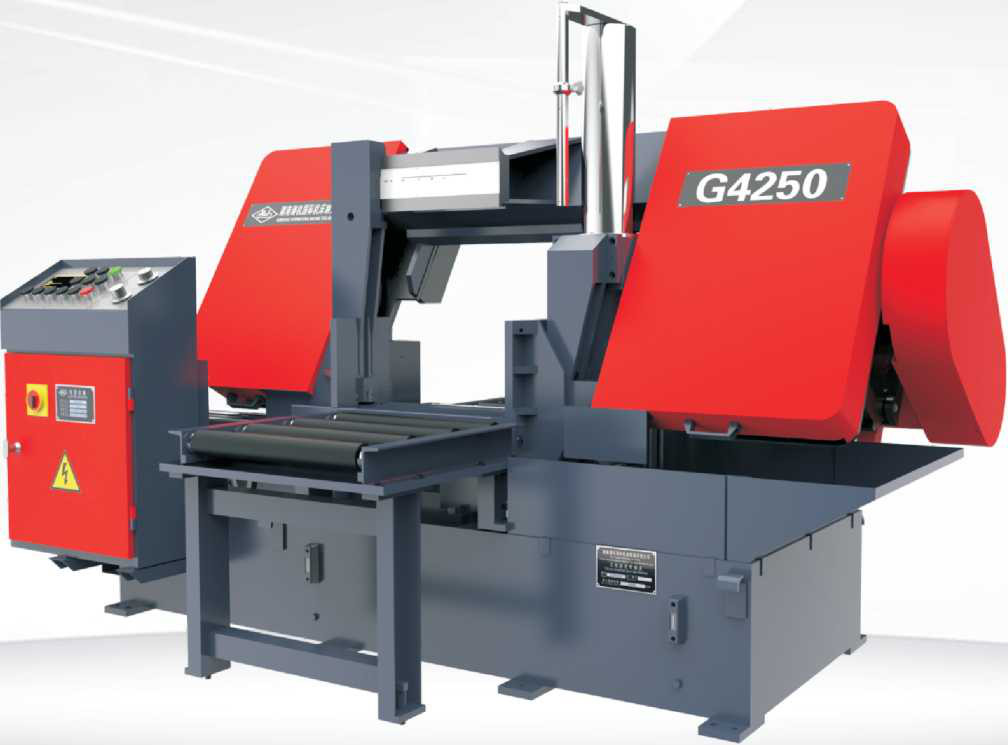

Automatic Horizontal Band Sawing Machine
This product is mainly used for mass cutting of ferrous metal materials. It is suitable for cutting all kinds of metal bar materials and profiles with the specification of 500mm and step processing. It can be equipped with beam forming device to cut small specification materials into beam Widely used in all walks of life of mechanical processing.




  Parameters   unit   Specifications
  Maximum saw specification
  Round stock   mm   φ500
  The material   mm   500X550
  Minimum saw specification   mm   Φ50
  Saw blade specifications   mm   41 x1. 26 x4880
  Saw blade speed   m/min   17, 35, 55, 75
  Feed speed   mm/s   0.2-5 (Hydraulic CVT)
  Feeding speed   mm/s
  Main motor power   kW   5.5
  Hydraulic system pressure   MPa   4.5 ~ 5.2
  Table height   mm   660
  Maximum single feed length   mm   manual
  Specification for clamping of   bunching device   mm   500x (50-150)
  Machine tool dimensions   mm   3000X2560X1880
  Machine net weight   kg   2700
