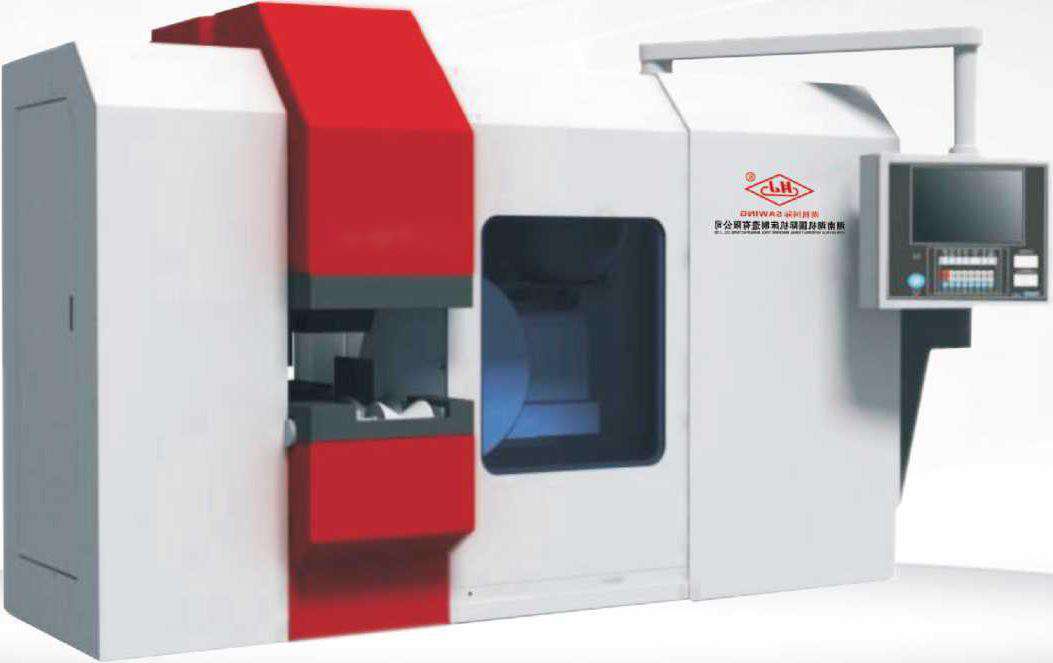

GKT608 CNC Carbide High-Speed Metal Circular Saw
Product information
Saw machine features
Man-machine interface system:
It adopts intelligent automation system + human touch and modular PLC control mode,which is simple and convient to operate, and the program is accurate,reliable and efficient. With upgrate port , meet the need of the users: remote control, self-examination,system upgrade, product fix-point transportation, etc.
Intergral Base
The base is made of intergralhigh strength casting. Machine performance is stable,efficient sawing and high procision. The base is equipped with circulated cooling watertank to meet the requirment of water water-based cooling liquid when sawing stronger and tougher alloy steel.
New gearbox stucture
With reasonable design, precise process and strict processing control, the power box has low noise and stable output. so as to ensure the sawing accuracy of the equipment and the durable quality of the power box.
Optionnal intelligent auxiliary oarts such as converying system line,intelligent three-domensional warehouse and CNC hole punching equipment.
Sawing equipment designed for three shifts of efficient continuous production.
The sawing strength can be 6b<1350N/mm2; Hardness within 40HRC of material difficult to cut
• Cutting sections free of burrs, stresses and cracks
• Digital automatic control, which can be integrated into the operation of the production line "turnkey" equipment
• Use vortex tube cooling technology and spray lubrication to cool the saw blade, which is green and environmentally friendly
| Parameters | unit | Specifications |
| GKT608 | ||
| Saw blade specifications | mm | 0830, 0965, <D1020 |
| Cutting material specification | mm | Φ70- Φ340. |
| Cutting speed | r/mm | 26, 32, 40, 48 |
| Feed speed | mm/min | 0-500 |
| Quick return speed | mm/min | 3000 |
| Table elevation | mm | 914 |
| Main motor power | kw | 55/67 |
| Machine net weight | kg | 8500 |
| Machine tool floor space size (excluding electric cabinet) | mm | About 5200 x2700x2260 |
