Product application

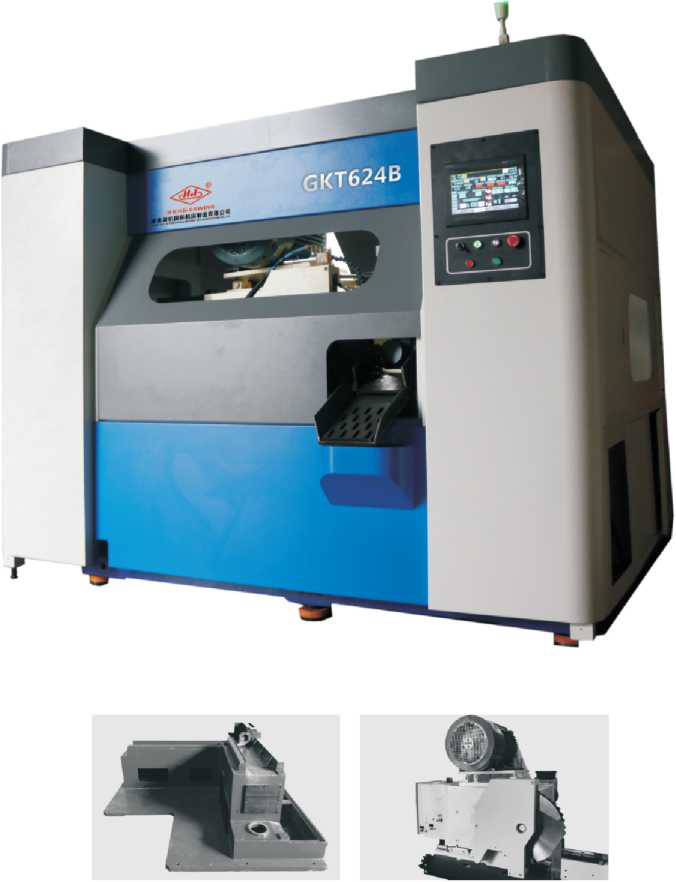

GKT624B CNC carbide circular saw machine is mainly used for cutting black or non-ferrous metal materials. carbide or cermet circular saw blades have been used as cutting tools and adopts CNC system to control, which can realize the automatic cycle of taking materials from the storage rack, sending to the sawing completion (including the process of material head and tail, the collection of finished work piece, etc., can be completed automatically).
Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory.
• It has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, and high degree of automation.
| Parameters | unit | Specifications |
| GKT624B | ||
| Saw blade specifications | mm | Φ460 x2. 7 |
| Cutting range | mm | Round bar 050 -150 squar bar 50 -110 |
| Maximum feeding length | mm | 600 + / - 0.05 |
| Saw blade rotation speed | rpm | 20 ~ 120 |
| Main motor | kw | 11 |
| The hydraulic motor | kw | 2.2 |
| Feed drive | kw | 2.0 servo motor + ball screw AC |
| Cutting drive | kw | 2.0 servo motor + ball screw AC |
| Cooling | lubricating cooling | |
| Hydraulic oil capacity | L | 100L 46# |
| The compressed air | bar | 4 ~ 6 |
| Machine size | mm | L=2100 W=2060 H=1760 |
| Net weight | kg | 3000 |
