HJ CNC Circular Metal Cutting Sawing Machine
The sawing strength can be 6b<1350N/mm2;Hardness within 40HRC of material difficult to cut
• Cutting sections free of burrs, stresses and cracks
• Digital automatic control, which can be integrated into the operation of the production line "turnkey" equipment
• Use vortex tube cooling technology and spray lubrication to cool the saw blade, which is green and environmentally friendly
Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory.
• It has the characteristics of
• high cutting accuracy,
• high production efficiency,
• low comprehensive cost,
• safety and environmental protection
• high degree of automation.
| Parameters | unit | Specifications |

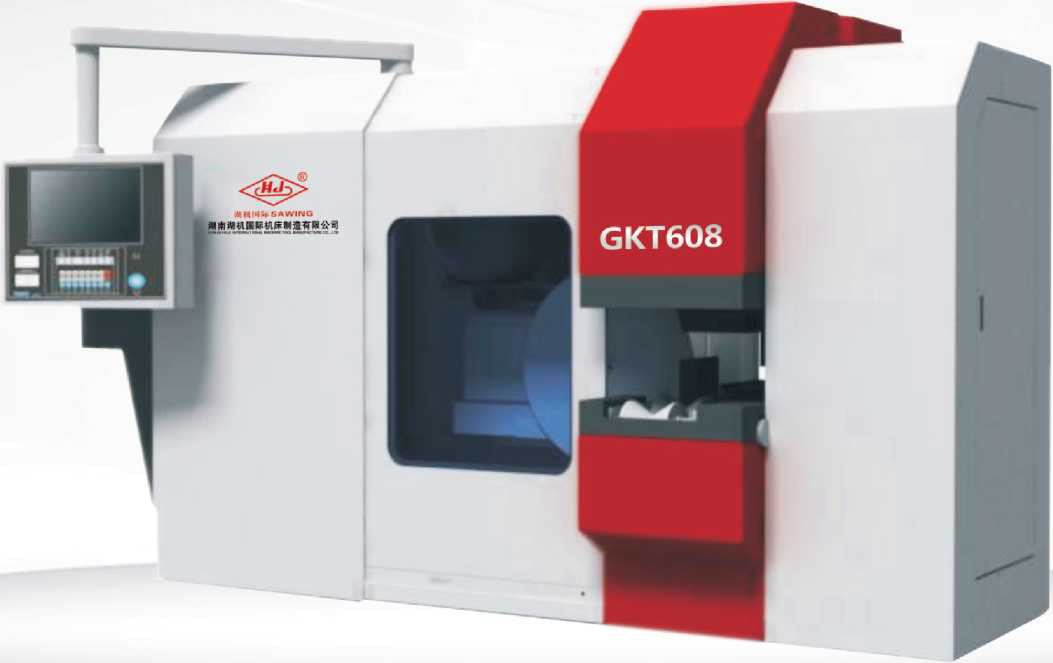

| GKT608 | ||
| Saw blade specifications | mm | 0830, 0965, <D1020 |
| Cutting material specification | mm | Φ70- Φ340. |
| Cutting speed | r/mm | 26, 32, 40, 48 |
| Feed speed | mm/min | 0-500 |
| Quick return speed | mm/min | 3000 |
| Table elevation | mm | 914 |
| Main motor power | kw | 55/67 |
| Machine net weight | kg | 8500 |
| Machine tool floor space size (excluding electric cabinet) | mm | About 5200 x2700x2260 |
