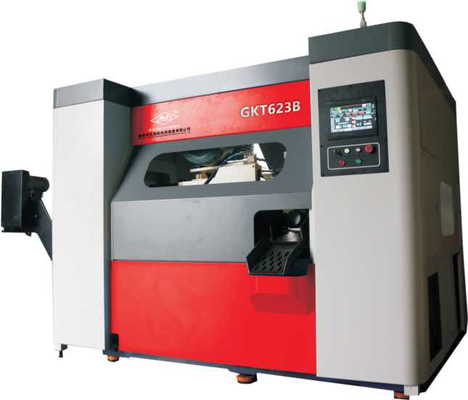

HJ Carbid High Speed Circulae Cutting Machine With Bar Feeder
Product application
• GKT623B CNC carbide circular sawing machine is mainly used for cutting ferrous or non-ferrous metal materials. Using carbide or ceramic circular saw blades as cutting tools and controlled by numerical control system, this machine can realize the automatic cycle of taking materials from the storage rack and sending to the sawing completion (including the process of material head and tail, the collection of finished work pieces, etc.).•.
Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory.
It has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection.
| Parameters | unit | Pecifications |
| GKT623B | ||
| Saw blade specifications | mm | Φ285 x2. 0 |
| Cutting range | mm | 15-65 15-55 |
| Maximum feeding length mm | 600 + / - 0.05 | |
| Saw blade rotation speed rpm | 30-150. | |
| Main motor | kw | 7.5 |
| The hydraulic motor | kw | 1.5 |
| Feed drive | kw | 1.5 Servo motor + ball screw AC |
| Cutting drive kW | 1.5 Servo motor + ball screw AC | |
| Cooling | Oil mist cooling | |
| Hydraulic oil capacity L | 100L 46# | |
| The compressed air | bar | 4 ~ 6 |
| Sawing machine size mm | L=1670 W=1910 H=1860 | |
| Net weight | kg | 1500 |
