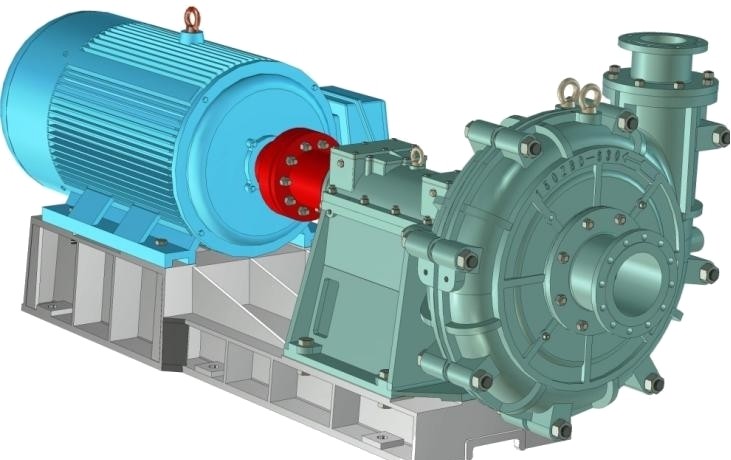

125ZBD-630 Slag Slurry Pump

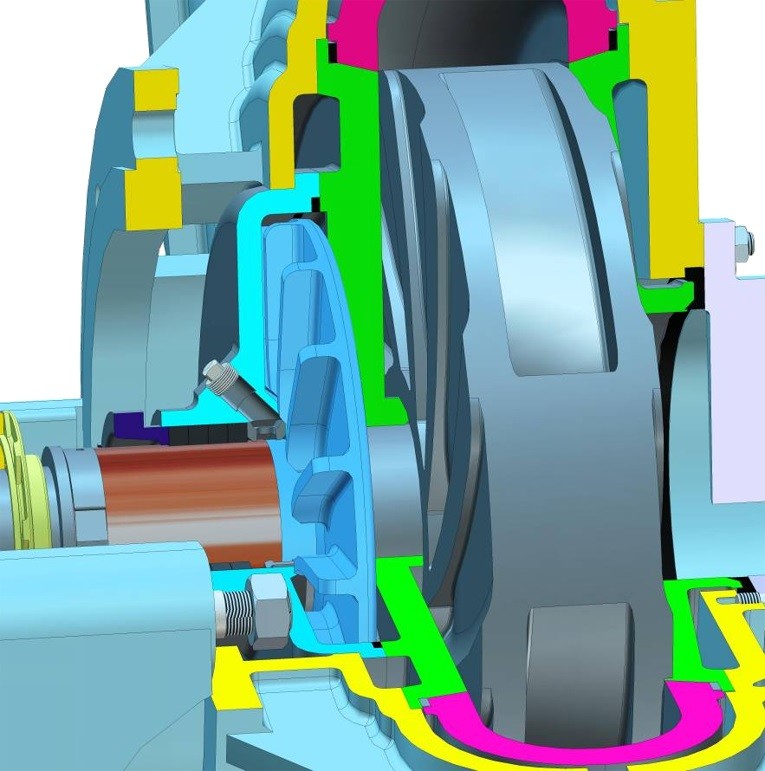

The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry
Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 228.0 | 65.9 | 52.9 | 172.2 | 37.6 | 51.3 | |||||
| 125ZBD-630 | 980 | 380.0 | 62.0 | 64.4 | 132 -160 | 740 | 286.9 | 35.4 | 62.4 | 55-75 |
| 456.0 | 58.6 | 66.3 | 344.3 | 33.4 | 64.3 | |||||
| 216.7 | 59.5 | 52.6 | 163.6 | 33.9 | 51.0 | |||||
| 125ZBD-630A | 980 | 361.1 | 56.0 | 64.0 | 110~132 | 740 | 272.7 | 31.9 | 62.1 | 45-75 |
| 433.4 | 52.9 | 65.9 | 327.2 | 30.2 | 63.9 | |||||
| 204.8 | 53.1 | 52.3 | 154.6 | 30.3 | 50.6 | |||||
| 125ZBD-630B | 980 | 341.3 | 50.0 | 63.6 | 90 -132 | 740 | 257.7 | 28.5 | 61.7 | 45-55 |
| 409.5 | 47.3 | 65.5 | 309.2 | 26.9 | 63.5 | |||||
| 194.2 | 47.8 | 52.0 | 146.7 | 27.3 | 50.3 | |||||
| 125ZBD-630C | 980 | 323.7 | 45.0 | 63.3 | 90 -110 | 740 | 244.5 | 25.7 | 61.3 | 37-45 |
| 388.5 | 42.5 | 65.1 | 293.3 | 24.3 | 63.1 |
