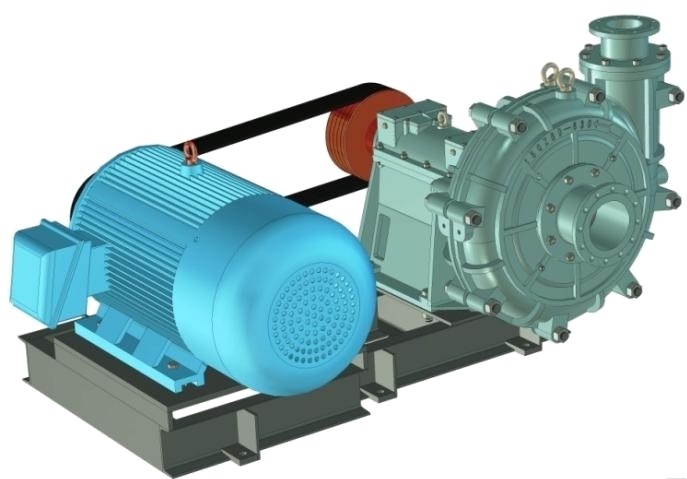

150ZBD-630 Slag Slurry Pump
The reliable design grants the tremendous improvement in MTBF.
Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 150ZBD-630 | 980 | 500.0 | 62.0 | 71.0 | 160~ 200 | 740 | 377.6 | 35.4 | 68.9 | 75-90 |
| 600.0 | 59.1 | 73.1 | 453.1 | 33.7 | 71.0 | |||||
| 285.1 | 59.1 | 59.2 | 215.3 | 33.7 | 57.5 | |||||
| 150ZBD-630A | 980 | 475.2 | 56.0 | 70.6 | 132 -160 | 740 | 358.8 | 31.9 | 68.6 | 55-75 |
| 570.2 | 53.4 | 72.7 | 430.6 | 30.4 | 70.6 | |||||
| 269.4 | 52.7 | 58.8 | 203.4 | 30.1 | 57.1 | |||||
| 150ZBD-630B | 980 | 449.0 | 50.0 | 70.2 | 110~132 | 740 | 339.1 | 28.5 | 68.1 | 55-75 |
| 538.8 | 47.7 | 72.3 | 406.9 | 27.2 | 70.2 | |||||
| 255.6 | 47.5 | 58.5 | 193.0 | 27.1 | 56.8 | |||||
| 150ZBD-630C | 980 | 426.0 | 45.0 | 69.8 | 110~132 | 740 | 321.7 | 25.7 | 67.8 | 45-55 |
| 511.2 | 42.9 | 71.9 | 386.0 | 24.5 | 69.8 |
