Non Clogging 200kw Hydraulic Mud Pump High Viscosity 300ZBD-630

1 Set
MOQ
Negotiable
Price
Non Clogging 200kw Hydraulic Mud Pump High Viscosity 300ZBD-630
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

200kw hydraulic mud pump

,

non clogging hydraulic mud pump

,

200kw high viscosity pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 300ZBD-630
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

300ZBD-630 Slag Slurry Pump

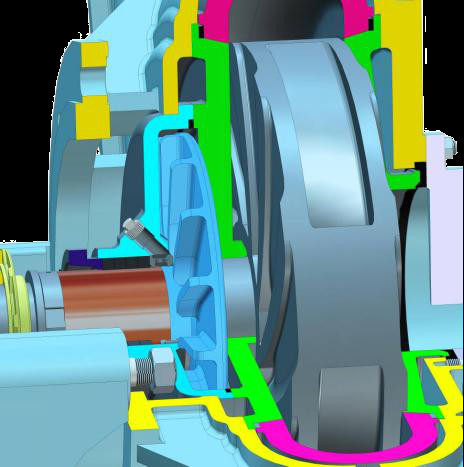

  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.

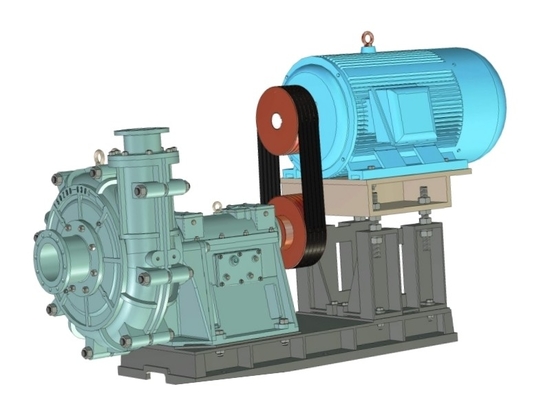

  • And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
  • The reliable design grants the tremendous improvement in MTBF.



Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed



 Type



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw

300ZBD-630 980 1600.0 62.0 80.0 450~ 560 740 1208.2 35.4 78.0 200~ 250
    1920.0 58.2 81.2     1449.8 33.2 79.2
    912.4 61.0 66.1     688.9 34.8 64.4
300ZBD-630A 980 1520.6 56.0 79.6 355 -450 740 1148.2 31.9 77.6 160~ 200
    1824.7 52.6 80.8     1377.9 30.0 78.8
    862.1 54.4 65.8     651.0 31.0 64.1
300ZBD-630B 980 1436.8 50.0 79.2 315~ 400 740 1085.0 28.5 77.2 132~185
    1724.2 46.9 80.4     1302.0 26.8 78.4
    817.9 49.0 65.5     617.6 27.9 63.8
300ZBD-630C 980 1363.1 45.0 78.9 280~ 355 740 1029.3 25.7 76.9 110~160
    1635.7 42.2 80.0     1235.1 24.1 78.0



Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.
