Heavy Duty 132kw 980r/Min Centrifugal Sludge Pump 300ZBD-530

1 Set
MOQ
Negotiable
Price
Heavy Duty 132kw 980r/Min Centrifugal Sludge Pump 300ZBD-530
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

980r/min centrifugal sludge pump

,

132kw centrifugal sludge pump

,

132kw heavy duty sludge pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 300ZBD-530
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

300ZBD-530 Slag Slurry Pump

  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

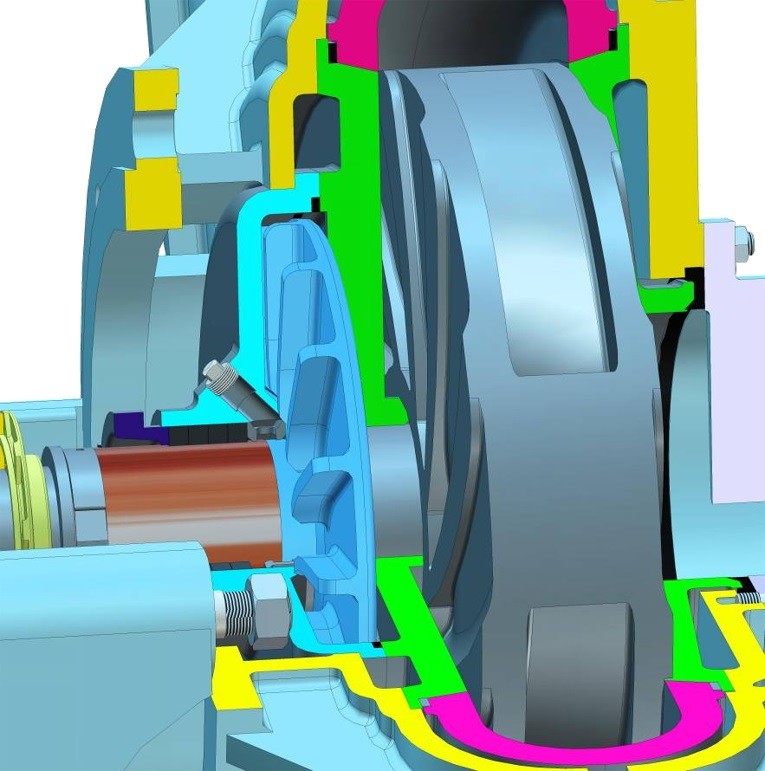

  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The reliable design grants the tremendous improvement in MTBF.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

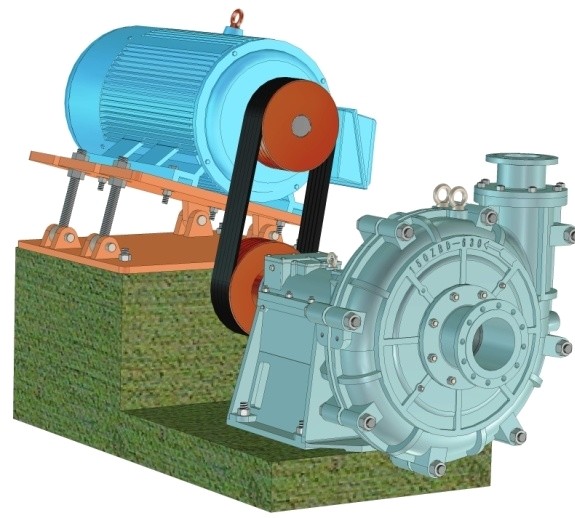

  • And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.



Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed



   Type



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw

300ZBD-530 980 1600.0 40.0 80.0 280~ 355 740 1208.2 22.8 78.0 132~160
    1920.0 36.2 81.0     1449.8 20.6 79.0
    898.0 40.3 69.3     678.1 22.9 67.5
300ZBD-530A 980 1496.7 35.0 79.5 220~ 280 740 1130.1 20.0 77.5 110 -130
    1796.0 31.7 80.5     1356.2 18.1 78.5
    831.4 34.5 68.8     627.8 19.7 67.1
300ZBD-530B 980 1385.6 30.0 79.0 185~ 220 740 1046.3 17.1 77.0 90-110
    1662.8 27.2 80.0     1255.6 15.5 77.9



Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.
