3775.5M3/H High Pressure Slurry Pump , 560kw Portable Sludge Pump 500ZBD-1250

1 Set
MOQ
Negotiable
Price
3775.5M3/H High Pressure Slurry Pump , 560kw Portable Sludge Pump 500ZBD-1250
Features Gallery Product Description Request A Quote
Features
Specifications
Power: Electric
Application: Sewage,Water/Sewage,mining
Structure: Single-stage Pump
Standard Or Nonstandard: Standard
Feature: High Efficiency,Long Working Life
Type: Horizontal
High Light:

3775.5M3/H high pressure slurry pump

,

560kw high pressure slurry pump

,

560kw portable sludge pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 500ZBD-1250
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 set per month
Product Description

500ZBD-1250 Slag Slurry Pump

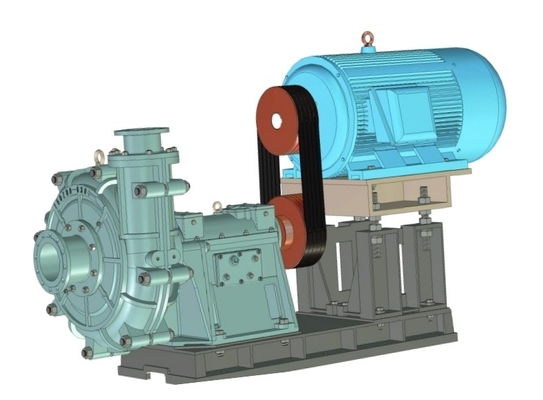

  • It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The reliable design grants the tremendous improvement in MTBF.

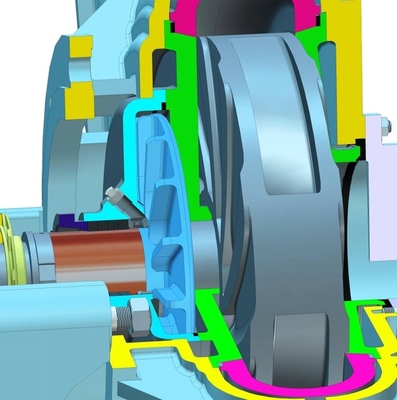

  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
  • With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.



Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed



     Type



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw

500ZBD-12505000.062.086.01250 -16003703775.535.484.0560~ 710
 6000.058.286.3  4530.633.284.3
 2851.160.773.7  2152.934.672.0
500ZBD-1250A4751.956.085.61120 -14003703588.231.983.7500~ 630
 5702.352.685.9  4305.830.084.0
 2694.154.273.4  2034.330.971.7
500ZBD-1250B4490.150.085.31000~12503703390.528.583.3500~ 560
 5388.246.985.5  4068.626.883.6
 2555.848.873.0  1929.927.871.4
500ZBD-1250C4259.745.084.9800 - 10003703216.525.782.9
 5111.742.285.2  3859.824.183.2



Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.




FAQ

  1. Q: What’ the MOQ?

           A: Trial sample is ok.


  1. Q: Are you factory or trading company?

     A: We are a manufacturer.


  1. Q: Can you accept to use our logo?

     A: Yes, we can do OEM for you.


  1. Q: How can I get the pump?

         A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.



  1. Q: What’s the warranty period?

     A: 1 year
