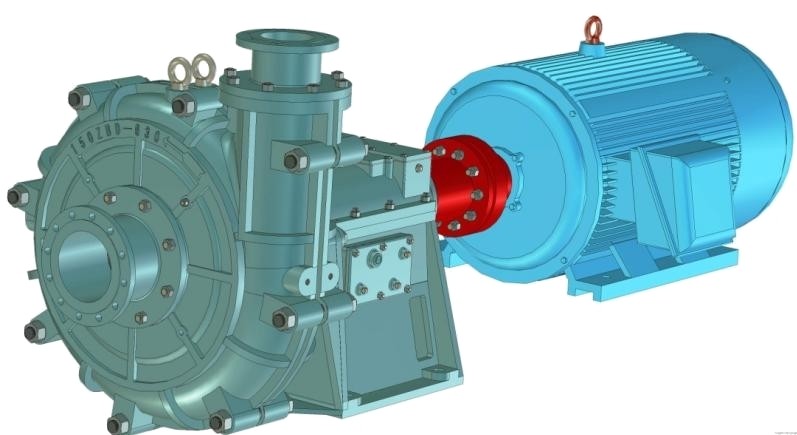

1480r/Min Horizontal Slurry Pump , 37kw Submersible Mud Pump 80ZBQ-315

80ZBQ-315 Slag Slurry Pump

• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
• It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
• With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

Clear Water Performance Parameter of ZBQ Series Slurry Pumps At The Same Speed

Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

• Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
• Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)

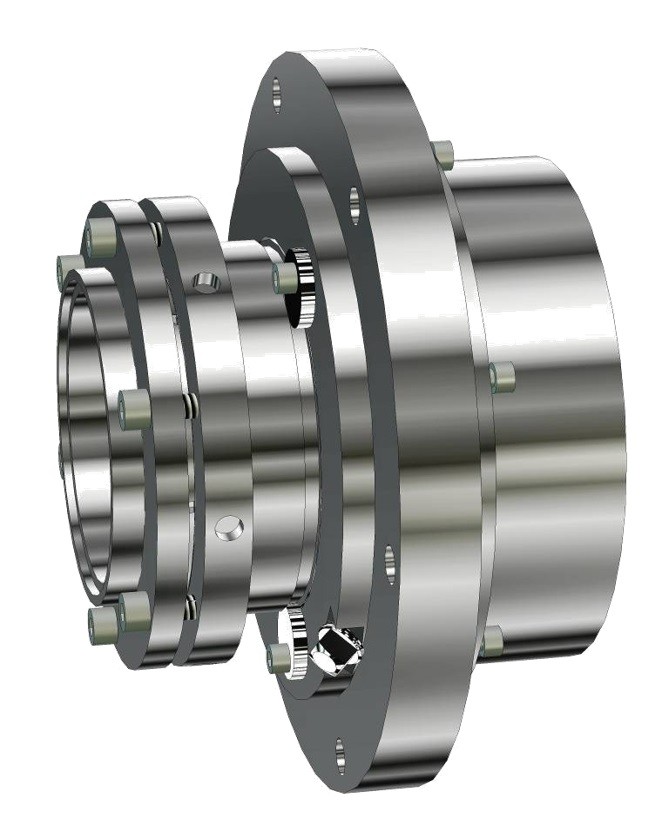

• Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
• Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
• Other special requirements: the direction of pump outlet,spare parts,Special tools.
• The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.
