Medical Chemistry Hydraulic Diaphragm Metering Pump Centrifugal Proportional

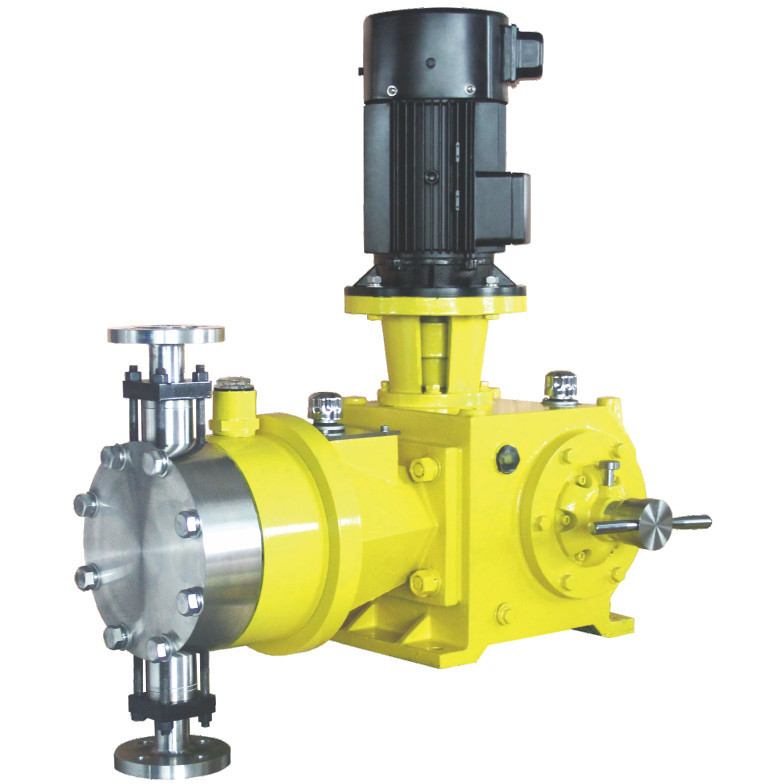

JMZ Series Hydraulic Diaphragm Metering Pump

Main Performance Parameters

• Max flow rate: 2400L/h
• Max discharge pressure: 28Mpa
• Max suction lift: 1.5m water column
• Medium temperature:-1012-100*C
• The highest ambient temperature: +40° C, the highest elevation: 1000m

Major Features

• Witch hard and compact design, its sealing performance is better than the plunger-type pump.
• Variable eccentric structural adjustment ensures smooth fluctuations in flow pulsation; new machine enables the result more accurate and reasonable.
• Refill valve ensures balanced hydraulic oil replenishment; adjustable safety valve fully protects the hydraulic end parts from damage, such as diaphragm rupture, caused by high pressure of hydraulic chamber.
• When transporting corrosive pulp, flammable, explosive, other dangerous chemicals, diaphragm rupture alarm device with double diaphragms shall be recommended.

Control Mode

• Power supply: 380V/220V-50Hz/60Hz/three-phase/single-phase

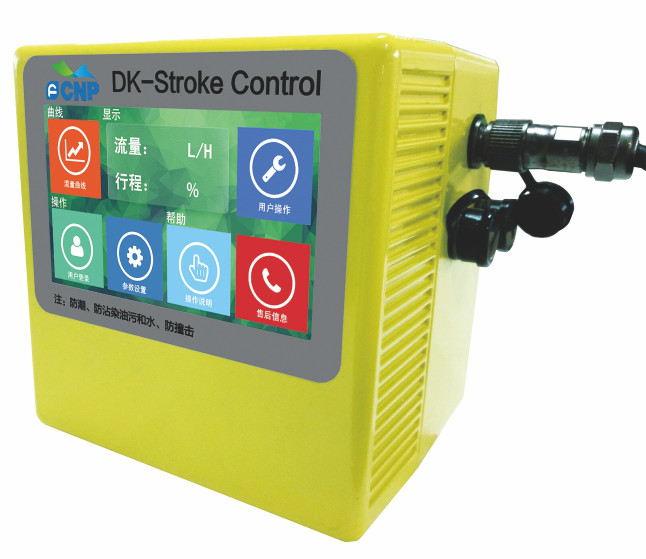

• Variable frequency controller receives the external control signal and adjusts the stroke speed, input signal: 4-20 mA analog signal
• Motor controller determines three-phase motor by "on/off" mode, adjusts the output flow

Main Applications

• The product is extensively used in many fields such as environmental protection, petrochemical, chemical, oil refining, metallurgy, medicine, food, water treatment and other fields, especially in the fields with high precision, high pressure, and high temperature.

Flow/Pressure
