ISO9001 Wear Resisatnt Automatic Circular Saw Cutting Machine For Metal Cutting

1 set
ISO9001 Wear Resisatnt Automatic Circular Saw Cutting Machine For Metal Cutting
Features Gallery Product Description Request A Quote
High Light:

wear resisatnt automatic circular saw cutting machine


ISO9001 automatic circular saw cutting machine


ISO9001 metal cutting circular saw

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: GKT6015
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 30 set per month
Product Description

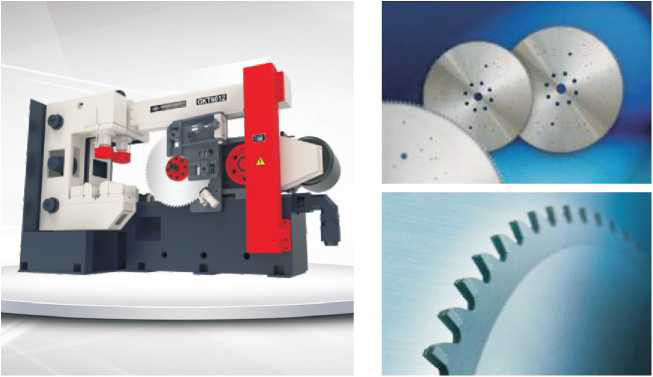

GKT6015 Carbide circular saw


This product is a brand new carbide circular saw machine, which USES carbide tipped circular saw blade as cutting tool to realize radial strong sawing of various black metal bar and pipe materials;

• Use PLC programmable controller and touch screen to realize automatic control of sawing process and different production process requirements, convenient adjustment and stable performance;The variable frequency speed control system is used to realize the different speed requirements of the sawing process. The speed regulation is convenient and the sawing is stable.

· Servo drive system is used to realize different speed requirements of saw feeding process, smooth feeding and accurate reading;

· Double hydraulic cylinder and double V-type vise is used to clamp the work piece to achieve the strong force clamping required by the saw cutting process, with large clamping force, stability and reliability;

· The sawing machine is equipped with special functions of work piece separation and quick return without contacting the work piece, which can protect the saw blade from damage and extend its service life; The sawing machine has a complete function of protection, monitoring and display.

• The saw machine is mainly used for cutting black metal bar and bl




  Parameters   unit   specifications
  Cutting diameter   mm   Φ180~520mm
  Circular saw blade diameter   mm   Φ1360~1600mm
  The efficiency of saw blade   mm   Φ400mm 45 steel, the time is 150s
