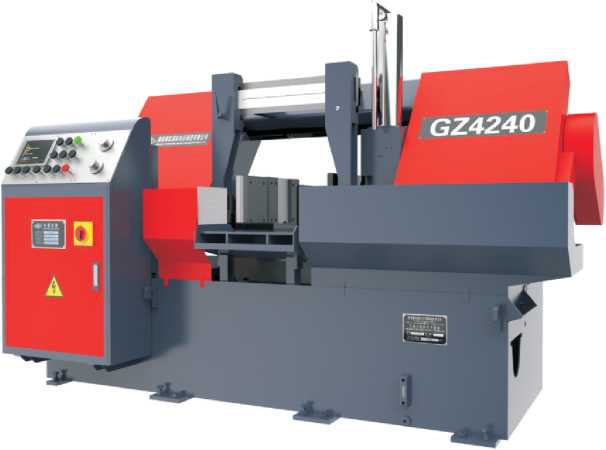

G4240 Automatic Horizontal Band Sawing Machine
This machine tool is mainly used for black metal material single piece or batch blanking operation. It is suitable for cutting and step processing of all kinds of metal bar materials and profiles with the specification of 400mm. It can be equipped with beam forming device to cut the materials with small specifications into beams.
Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory
| parameters | unit | specifications |
| G4240 | ||
| Round stock | mm | φ410 |
| The material | mm | 410X410 |
| Minimum saw specification | mm | φ40 |
| Saw blade specifications | mm | 34 x1. 06 x4585 |
| Saw blade speed | m/min | 35, 20, 50, 70 |
| Feed speed | mm/s | (Hydraulic CVT) (Hydraulic |
| Main motor power | kW | 4 |
| Hydraulic system pressure | MPa | 3.2 ~ 3.8 |
| Table height | mm | 700 |
| Maximum single feed length | mm | manual |
| Specification for clamping of bunching device | mm | 400x (30-90) |
| Machine tool dimensions | mm | 2320X2350X1580 |
| Machine net weight | kg | 2200 |
