5.2mpa 17m/Min Metal Cutting Horizontal Band Saw For Industrial

1 Set
MOQ
Negotiable
Price
5.2mpa 17m/Min Metal Cutting Horizontal Band Saw For Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: ISO9001
Product Name: Metal Cutting Horizontal Band Saw
Usage: Metal Cutting
Weight (kg): 1500
Key Selling Points: Competitive Price,Automatic
Rated Power: 5.5kw
High Light:

5.2mpa metal cutting horizontal band saw

,

17m/min metal cutting horizontal band saw

,

5.2mpa industrial metal band saw

Basic Infomation
Place of Origin: China
Brand Name: HJ
Model Number: GZ4250
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Product Description

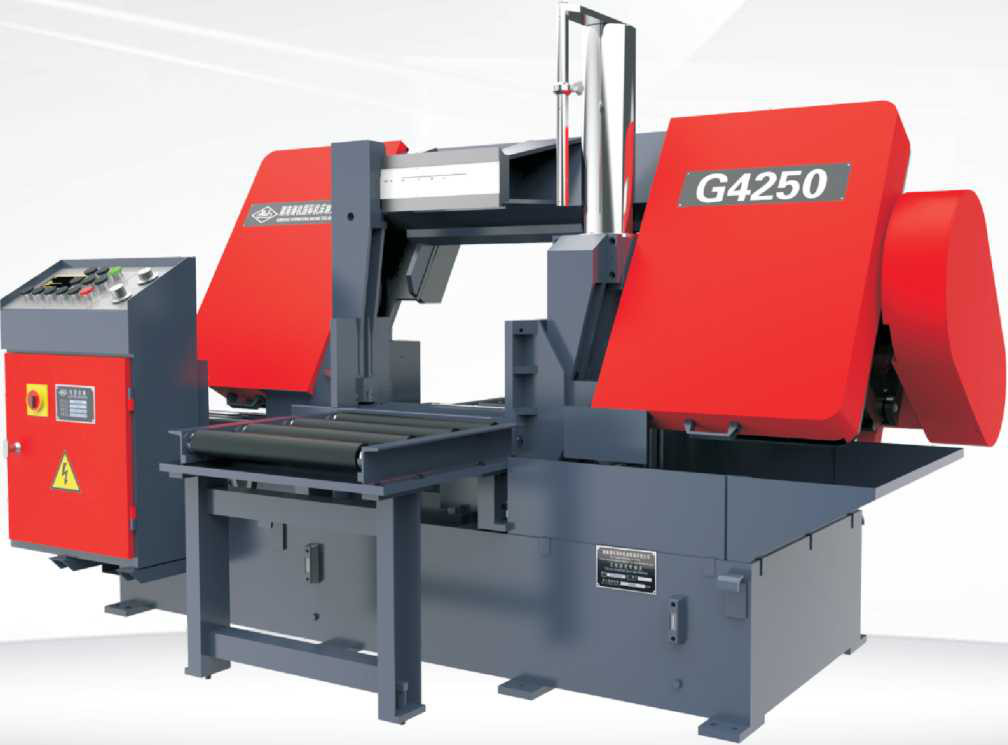

GZ4250 Automatic double column horizontal band sawing machine



The product is mainly used for mass cutting of ferrous metal materials. It is suitable for cutting all kinds of metal bar materials and profiles with the specification of 500mm and step processing. It can be equipped with beam forming device to cut small specification materials into beam Widely used in all walks of life of mechanical processing.







Parameters unit specifications
G4250 GZ4250
Maximum saw specification
Round stock mm φ500 φ500
The material mm 500X550 500X550
Minimum saw specification mm Φ50 φ50
Saw blade specifications mm 41 x1. 26 x4880 41 x1. 26 x5240
Saw blade speed m/min 17, 35, 55, 75 17, 35, 55, 75
Feed speed mm/s 0.2-5 (Hydraulic CVT) 0.2-5 (Hydraulic CVT)
Feeding speed mm/s   35
Main motor power kW 5.5 5.5
Hydraulic system pressure MPa 4.5 ~ 5.2 4.5 ~ 5.2
Table height mm 660 660
Maximum single feed length mm manual 400
Specification for clamping of bunching device mm 500x (50-150) 500x (50-150)
Machine tool dimensions mm 3000X2560X1880 3000X2560X1880
Machine net weight kg 2700 2800
