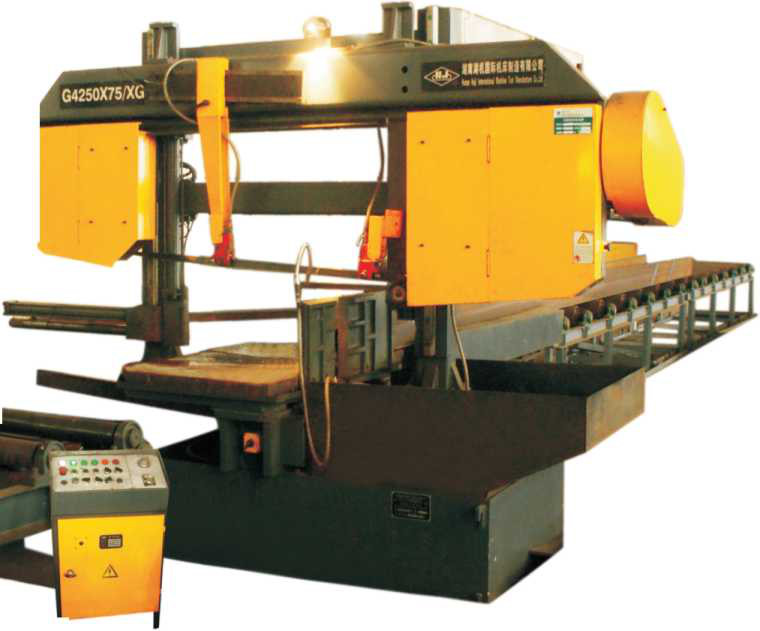

HJ G4250X75 Section Steel Column Horizontal Band Sawing Machine
G4250XG steel column horizontal band sawing machine, mainly used for sawing all kinds of section steel and pipe materials, with Angle sawing function, narrow flange, material saving, energy saving, high cutting precision, safe operation, convenient, high production efficiency.
| Parameters | unit | |
| G4250XG | ||
| Maximum sawing specifications: | ||
| For 90° Sawing : A. Shape steel (wide crane type) | mm | 750X500 |
| B. Round steel | mm | Φ500 |
| 45 When sawing: A. Shape steel (width X height) | mm | 500X500 |
| B. round stock | mm | Φ500 |
| Minimum opening of vice (90.When) | mm | 250 |
| Saw frame brigade turn Angle | - 15 ° - + 45O | |
| Angle saw cutting accuracy | + / - 0.5 ° | |
| Saw blade specification (length X width X thickness) | mm | About 6185 x41x1. 26 |
| Saw blade speed | m/min | 17.35.55.75 |
| Main motor power | kw | 5.5 |
| Hydraulic motor power | kw | 2.2 |
| Cooling pump power | kw | 0.12 |
| Feed speed | Hydraulic step-less | Hydraulic step-less |
| Hydraulic tank capacity ■ | L | About 120 |
| Hydraulic system pressure | MPA | 4.5 |
| Machine input power voltage | A.C 380 v, 50 HZ | |
| Table height | mm | About 800 |
| Weight bearing capacity of fuselage (excluding load bearing capacity of material frame) | kg | 4000 |
| Length of power frame | mm | 2000 |
