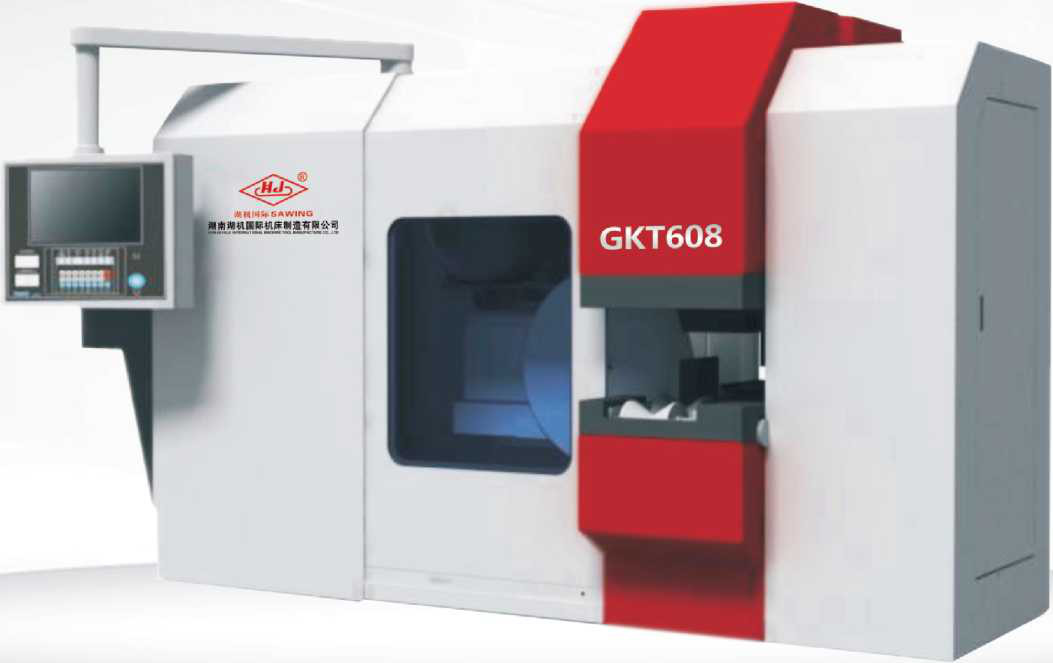

GKT608 CNC Carbide Circular Sawing Machine
Man-machine interface system:
It adopts intelligent automation system + human touch and modular PLC control mode, which is simple and convenient to operate, and the program is accurate, reliable and efficient. With up grated ports, meet the need of the users: remote control, self-examination system upgrade, product fix-point transportation, etc.
Integrated Base
The base is made of integrated high strength casting. Machine performance is stable efficient sawing and high precision. The base is equipped with circulated cooling water tank to meet the requirement of water water-based cooling liquid when sawing stronger and tougher alloy steel.
New gearbox structure
With reasonable design, precise process and strict processing control, the power box has low noise and stable output. so as to ensure the sawing accuracy of the equipment and the durable quality of the power box.
Optional intelligent auxiliary parts such as conveying system line intelligent three-dimensional warehouse and CNC hole punching equipment.
Sawing equipment designed for three shifts of efficient continuous production.The sawing strength can be 6b<1350N/mm2 Hardness within 40HRC of material difficult to cut
• Cutting sections free of burrs, stresses and cracks
• Digital automatic control, which can be integrated into the operation of the production line "turnkey" equipment
• Use vortex tube cooling technology and spray lubrication to cool the saw blade, which is green and environmentally friendly
| Parameters | unit | Specifications |
| GKT608 | ||
| Saw blade specifications | mm | 0830, 0965, <D1020 |
| Cutting material specification | mm | Φ70- Φ340. |
| Cutting speed | r/min | 26, 32, 40, 48 |
| Feed speed | mm/min | 0-500 |
| Quick return speed | mm/min | 3000 |
| Table elevation | mm | 914 |
| Main motor power | kw | 55/67 |
| Machine net weight | kg | 8500 |
| Machine tool floor space size (excluding electric cabinet) | mm | About 5200 x2700x2260 |
