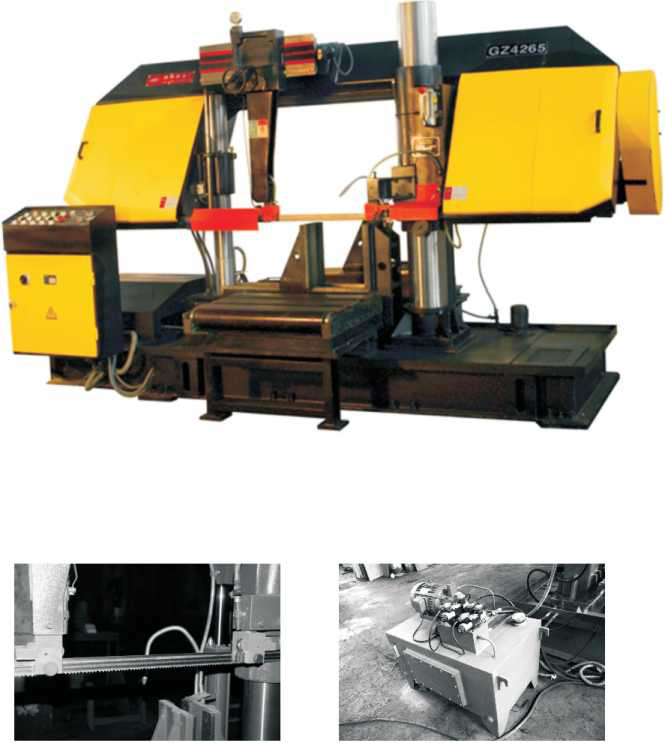

HJ GZ4265 Automatic double column horizontal band sawing machine
This product is mainly used for cutting round material, square material, profile and pipe material of ferrous metal. Can meet the user sawing hardness less than HRC35 ferrous metals and non-ferrous metals. It is very suitable for sawing medium forgings, steel ingot, grinding blank and other materials. The machine adopts double column structure to ensure the working stability and dependability of the machine. The advanced hydraulic system is adopted to ensure the smooth and effective operation of the sawing, and PLC is adopted to control the electric and gas system of the machine, so that the performance of the whole machine can be fully guaranteed.
| The basic parameters | unit | specifications |
| GZ4265 | ||
| Maximum saw specification | ||
| Round stock | mm | Φ 650 |
| The material | mm | 700X650 |
| Minimum saw specification | mm | |
| According to the specifications | mm | 41 x1. 25 x7650 |
| Saw blade speed | m/min | 24 x 40 and 60 |
| Main motor power | kW | 5.5 |
| Hydraulic motor power | kW | 2.2 |
| Hydraulic system pressure | MPa | 4.5 |
| Hydraulic tank capacity | L | 150 |
| Cooling pump power | KW | 0.15 |
| Table height | mm | 620 |
| Machine tool carrying capacity kg | 12000 | |
| Machine tool dimensions | mm | 1640X2200X3668 |
| Machine net weight | kg | 5500 |
