50m/Min Double Head Cutting Horizontal Band Saw ISO9001 Approved

1 Set
50m/Min Double Head Cutting Horizontal Band Saw ISO9001 Approved
Features Gallery Product Description Request A Quote
Name: HN054 Axle Horizontal Double-head Sawing Machine
Condition: New
Application: Industrial Metal Cutting
Type: Band Saw
Weight (kg): 1500
Rated Power: 4X2kw
High Light:

50m/min horizontal band saw


ISO9001 horizontal band saw


50m/min double head cutting saw

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: HN054
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Product Description

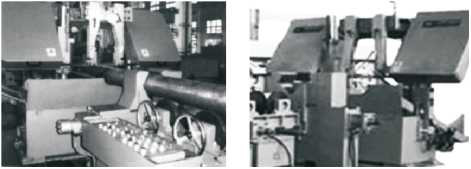

HN054 Axle horizontal double-head sawing machine


This product is mainly used in the special sawing (aluminum) compound machine tool for shaft machining parts, such as train wheel and axle, which need both ends of sawing at the same time and punching the center hole.




The basic parameters unit specifications
Long shaft range of machining shaft mm 1600-3000.
Machining axle diameter range mm Φ100 -Φ280.
Specification of band saw blade mm 34 x1. 06 x4585
Saw blade speed m/min 20, 35, 50, 70
Feed speed m/min Step-less speed regulation
Main motor power kw 4X2
Hydraulic motor power kw 4
Cooling motor power kw 0.09 X2
Hydraulic tank rongxing L 150
Cooling water tank rongxing L 70X2
Maximum machining axle blank heavy star kg 1500
The perpendicularity of the end of a sawn member facing its axis mm/mm 0.4/100
Single piece processing beat min / 9.6
