Corrosion Proof 48r/Min Cnc Circular Saw Machine For Woodworking

1 Set
MOQ
Negotiable
Price
Corrosion Proof 48r/Min Cnc Circular Saw Machine For Woodworking
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

48r/min cnc circular saw machine

,

corrosion proof cnc circular saw machine

,

48r/min electric circular saw for wood

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: GKT608
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Product Description

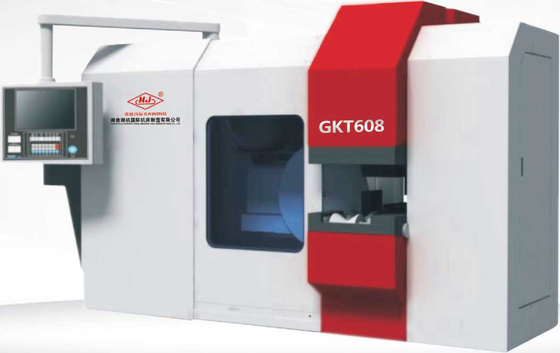

GKT608 CNC High Speed Carbide Circular Sawing Machine



Saw machine features

Man-machine interface system:

It adopts intelligent automation system + human touch and modular PLC control mode,which is simple and convient to operate, and the program is accurate,reliable and efficient. With upgrate port , meet the need of the users: remote control, self-examination,system upgrade, product fix-point transportation, etc.

Intergral Base

The base is made of intergralhigh strength casting. Machine performance is stable,efficient sawing and high procision. The base is equipped with circulated cooling watertank to meet the requirment of water water-based cooling liquid when sawing stronger and tougher alloy steel.

New gearbox stucture

With reasonable design, precise process and strict processing control, the power box has low noise and stable output. so as to ensure the sawing accuracy of the equipment and the durable quality of the power box.

Optionnal intelligent auxiliary oarts such as converying system line,intelligent three-domensional warehouse and CNC hole punching equipment.



Sawing equipment designed for three shifts of efficient continuous production

The sawing strength can be 6b<1350N/mm2;Hardness within 40HRC of material difficult to cut

• Cutting sections free of burrs, stresses and cracks

• Digital automatic control, which can be integrated into the operation of the production line "turnkey" equipment

• Use vortex tube cooling technology and spray lubrication to cool the saw blade, which is green and environmentally friendly





  Parameters   unit   specifications
  GKT608
  Saw blade specifications   mm   0830, 0965, <D1020
  Cutting material specification   mm   Φ70- Φ340.
  Cutting speed   r/mm   26, 32, 40, 48
  Feed speed   mm/min   0-500
  Quick return speed   mm/min   3000
  Table elevation   mm   914
  Main motor power   kw   55/67
  Machine net weight   kg   8500
  Machine tool floor space size (excluding electric cabinet)   mm   About 5200 x2700x2260
