30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter

1 Set
30r/Min CNC Circular Saw Machine , 7500watt Metal Saw Cutter
Features Gallery Product Description Request A Quote
High Light:

30r/min CNC Circular Saw Machine


7500watt CNC Circular Saw Machine


7500watt metal saw cutter

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: GKT623B
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Product Description

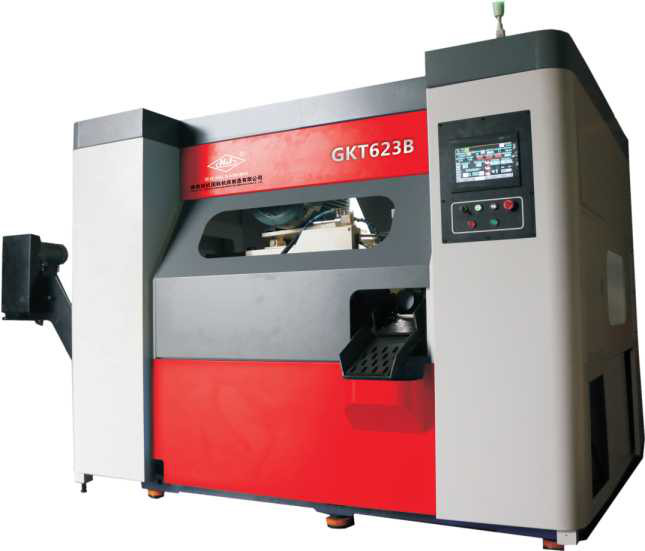

HJ GKT623B CNC Circular Saw Machine


• GKT623B CNC carbide circular sawing machine is mainly used for cutting ferrous or non-ferrous metal materials. Using carbide or ceramic circular saw blades as cutting tools and controlled by numerical control system, this machine can realize the automatic cycle of taking materials from the storage rack and sending to the sawing completion (including the process of material head and tail, the collection of finished work pieces, etc.).• The machine has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, high degree of automation.





  Parameters   unit   Specifications
  Saw blade specifications   mm   Φ285 x2. 0
  Cutting range   mm   15-65 15-55
  Maximum feeding length mm   600 + / - 0.05
  Saw blade rotation speed rpm   30-150.
  Main motor   kw   7.5
  The hydraulic motor   kw   1.5
  Feed drive   kw   1.5 Servo motor + ball screw AC
  Cutting drive kW   1.5 Servo motor + ball screw AC
  Cooling     Oil mist cooling
  Hydraulic oil capacity L   100L 46#
  The compressed air   bar   4 ~ 6
  Sawing machine size mm   L=1670 W=1910 H=1860
  Net weight   kg   1500
