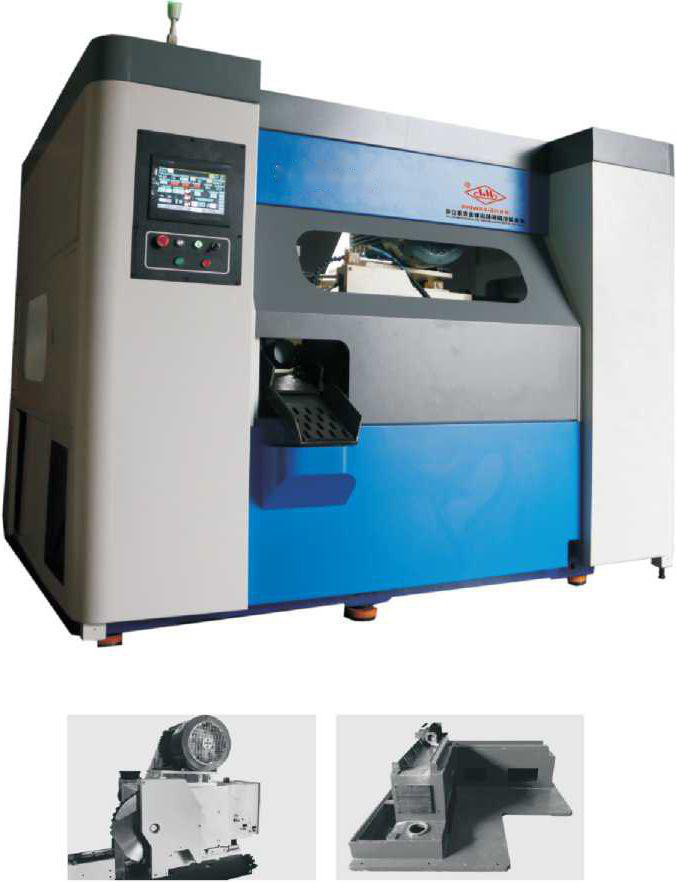

CNC Carbide Circular cutting Saw machine
GKT624B CNC carbide circular saw has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, and high degree of automation.
| Parameters | unit | Specifications |
| GKT624B | ||
| Saw blade specifications | mm | Φ460 x2. 7 |
| Cutting range | mm | Round bar 050 -150 squar bar 50 -110 |
| Maximum feeding length | mm | 600 + / - 0.05 |
| Saw blade rotation speed | rpm | 20 ~ 120 |
| Main motor | kw | 11 |
| The hydraulic motor | kw | 2.2 |
| Feed drive | kw | 2.0 servo motor + ball screw AC |
| Cutting drive | kw | 2.0 servo motor + ball screw AC |
| Cooling | Lubricating cooling | |
| Hydraulic oil capacity | L | 100L 46# |
| The compressed air | bar | 4 ~ 6 |
| Sawi machine size | mm | L=2100 W=2060 H=1760 |
| Net weight | kg | 3000 |
