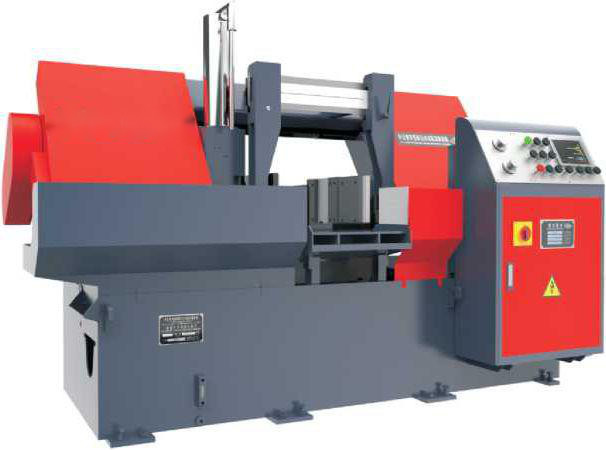

Hydraulic CVT Automatic double column horizontal band saw machine
Product information
This product is mainly used for cutting ferrous metal material single piece or batch blanking operation. Suitable for cutting and step processing of all kinds of metal bars with specifications of 250mm. It can be equipped with beam forming device to cut small specification materials .
Widely used in variety fields of mechanical processing.
| Parameters | unit | Specifications | |
| G4225 | GZ4225 | ||
| Maximum saw specification | |||
| Round stock | mm | φ250 | φ250 |
| Square stock | mm | 250X250 | 250X250 |
| Minimum saw specification | mm | ||
| Saw blade specifications | mm | 27 x0. 9 x3505 | 27 x0. 9 x3505 |
| Saw blade speed | m/min | 27, 40, 54, 75 | 27, 40, 54, 75 |
| Feed speed | mm/s | 0.2-5 (Hydraulic CVT) | 0.2-5 (Hydraulic CVT) |
| Feeding speed | mm/s | 50 | |
| Main motor power | kw | 2.2 | 2.2 |
| Hydraulic system pressure | MPa | 2.2 ~ 2.8 | 2.2 ~ 2.8 |
| Table height | mm | 700 | 700 |
| Maximum single feed length | mm | manual | 400 |
| Specification for clamping of bunching device | mm | 250x (20-80) | 250x (20-80) |
| Machine tool dimensions | mm | 2020X1990X1350 | 2020X1990X1350 |
| Net weight | kg | 1400 | 1800 |
