30R/MIN 7500W Automatic Circular Saw Sharpening Machine For Metal

1 Set
MOQ
Negotiable
Price
30R/MIN 7500W Automatic Circular Saw Sharpening Machine For Metal
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

7500W automatic circular saw sharpening machine

,

30R/MIN automatic circular saw sharpening machine

,

30R/MIN metal saw cutter

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: GKT623B
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Product Description

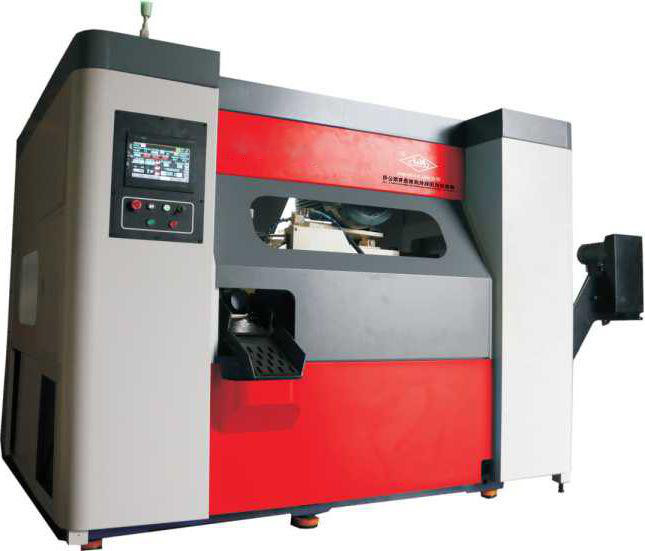

Atomatic CNC High Speed Circular Saw Machine



Product information



• GKT623B CNC carbide circular sawing machine is mainly used for cutting ferrous or non-ferrous metal materials. Using carbide or ceramic circular saw blades as cutting tools and controlled by numerical control system, this machine can realize the automatic cycle of taking materials from the storage rack and sending to the sawing completion (including the process of material head and tail, the collection of finished work pieces, etc.).•



The machine has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, high degree of automation.







  Parameters   unit   Specifications
  GKT623B
  Saw blade specifications   mm   Φ285 x2. 0
  Cutting range   mm   15-65 15-55
  Maximum feeding length             mm   600 + / - 0.05
  Saw blade rotation speed            rpm   30-150.
  Main motor   kw   7.5
  The hydraulic motor   kw   1.5
  Feed drive   kw   1.5 Servo motor + ball screw AC
  Cutting drive kW   1.5 Servo motor + ball screw AC
  Cooling     Oil mist cooling
  Hydraulic oil capacity L   100L 46#
  The compressed air   bar   4 ~ 6
  Saw machine size                       mm   L=1670 W=1910 H=1860
  Net weight   kg   1500
