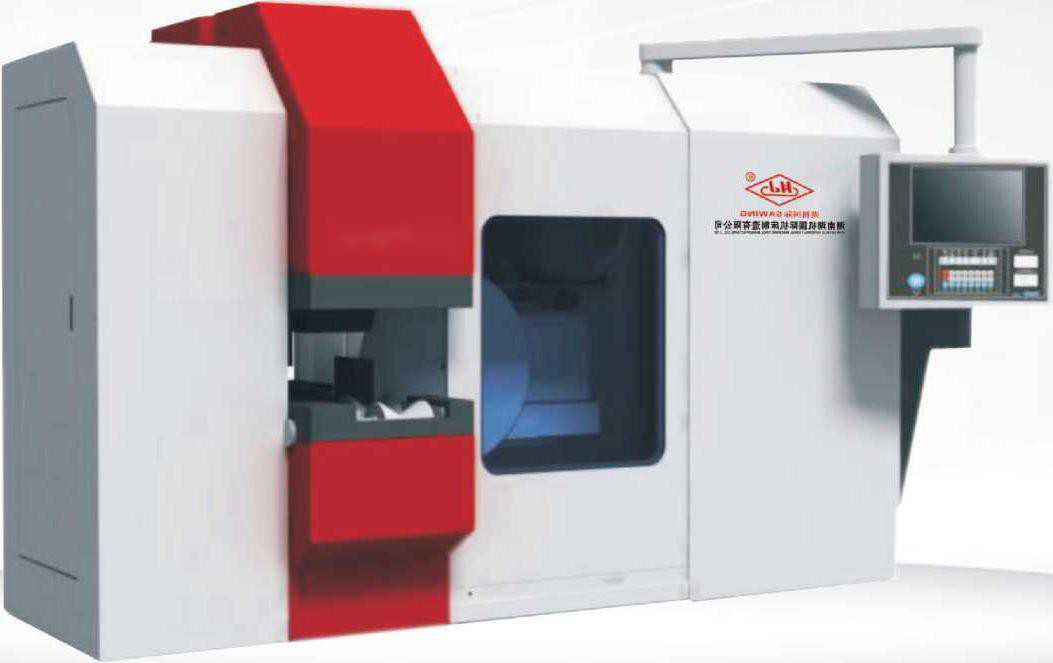

GKT608 CNC High Speed carbide circular sawing machine
Product information
Saw machine features
Man-machine interface system
Intergral Base
New gearbox stucture
Optionnal intelligent auxiliary oarts such as converying system line,intelligent three-domensional warehouse and CNC hole punching equipment.
Sawing equipment designed for three shifts of efficient continuous production.
The sawing strength can be 6b<1350N/mm2; Hardness within 40HRC of material difficult to cut
• Cutting sections free of burrs, stresses and cracks
• Digital automatic control, which can be integrated into the operation of the production line "turnkey" equipment
• Use vortex tube cooling technology and spray lubrication to cool the saw blade, which is green and environmentally friendly
| Parameters | unit | Specifications |
| GKT608 | ||
| Saw blade specifications | mm | 0830, 0965, <D1020 |
| Cutting material specification | mm | Φ70- Φ340. |
| Cutting speed | r/mm | 26, 32, 40, 48 |
| Feed speed | mm/min | 0-500 |
| Quick return speed | mm/min | 3000 |
| Table elevation | mm | 914 |
| Main motor power | kw | 55/67 |
| Machine net weight | kg | 8500 |
| Machine tool floor space size (excluding electric cabinet) | mm | About 5200 x2700x2260 |
