4bar Metal Cutting Saw Machine , 120RPM Heavy Duty Circular Saw Machine

1 Set
MOQ
Negotiable
Price
4bar Metal Cutting Saw Machine , 120RPM Heavy Duty Circular Saw Machine
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

120RPM metal cutting saw machine

,

4bar metal cutting saw machine

,

120RPM heavy duty circular saw

Basic Infomation
Place of Origin: China
Brand Name: HJ
Certification: ISO9001
Model Number: GKT624B
Payment & Shipping Terms
Packaging Details: Plywood case or pallet
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Product Description

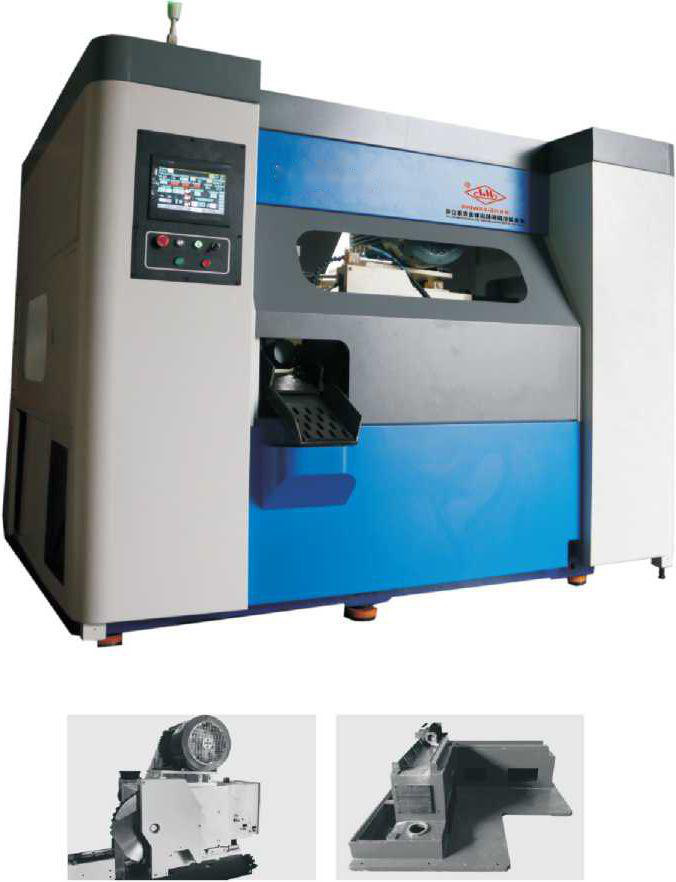

HJ Atomatic CNC Circular Metal Cutting Saw Machine



Product application



The product is mainly used for cutting black or non-ferrous metal materials. carbide or cermet circular saw blades have been used as cutting tools and adopts CNC system to control, which can realize the automatic cycle of taking materials from the storage rack, sending to the sawing completion (including the process of material head and tail, the collection of finished work piece, etc., can be completed automatically).



• The machine has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, and high degree of automation.





  Parameters   unit   Specifications
  GKT624B
  Saw blade specifications   mm   Φ460 x2. 7
  Cutting range   mm   Round bar 050 -150 squar bar 50 -110
  Maximum feeding length   mm   600 + / - 0.05
  Saw blade rotation speed   rpm   20 ~ 120
  Main motor   kw   11
  The hydraulic motor   kw     2.2
  Feed drive   kw   2.0 servo motor + ball screw AC
  Cutting drive   kw   2.0 servo motor + ball screw AC
  Cooling     Lubricating cooling
  Hydraulic oil capacity   L   100L 46#
  The compressed air   bar   4 ~ 6
  Saw machine size   mm   L=2100 W=2060 H=1760
  Net weight   kg   3000
