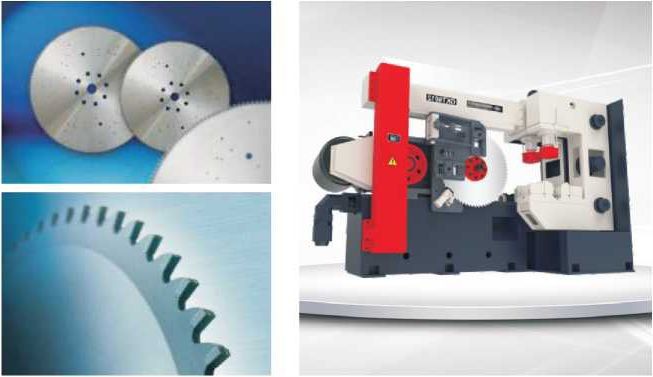

Carbide Circular Saw Machine
Product information
This product is a brand new carbide circular saw machine, which USES carbide tipped circular saw blade as cutting tool to realize radial strong sawing of various black metal bar and pipe materials;
• Use PLC programmable controller and touch screen to realize automatic control of sawing process and different production process requirements, convenient adjustment and stable performance;The variable frequency speed control system is used to realize the different speed requirements of the sawing process. The speed regulation is convenient and the sawing is stable.
· Servo drive system is used to realize different speed requirements of saw feeding process, smooth feeding and accurate reading;
· Double hydraulic cylinder and double V-type vise is used to clamp the work piece to achieve the strong force clamping required by the saw cutting process, with large clamping force, stability and reliability;
· The sawing machine is equipped with special functions of work piece separation and quick return without contacting the work piece, which can protect the saw blade from damage and extend its service life; The sawing machine has a complete function of protection, monitoring and display.
• The saw machine is mainly used for cutting black metal bar and pipe.
| Parameters | unit | Specifications |
| GKT6015 | ||
| Cutting diameter | mm | Φ180~520mm |
| Circular saw blade diameter | mm | Φ1360~1600mm |
| The efficiency of saw blade | mm | Φ400mm 45 steel, the time is 150s |
Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory.
