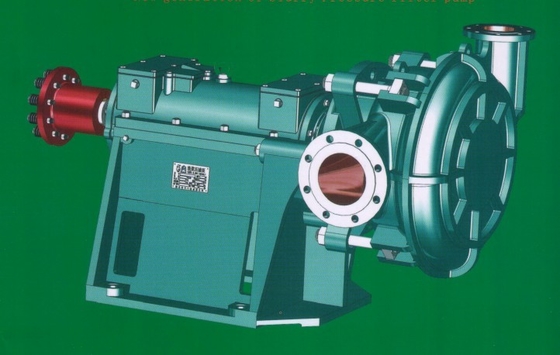

X50ZBYL-250 Slurry Filter Press Pump
ZBYL series slag slurry pressure filter pump is a new generation of high-efficiency and energy-saving patented product designed and produced by the company with comprehensive application of the latest pump design theory, aiming at the shortcomings of holding back the pump, material leakage and low efficiency when the ordinary slag slurry pump is pressed and filtered.The pump features are as follows:U The pump adopts the radial suction method, and the combination of the impeller sealing technology completely solves the leakage problem of the pump used in the filter press;U Application of pump CAD technology and optimization theory design, high pump efficiency.The efficiency of the series of pumps all meet the requirements for superior products in "JB/T53060-93 Product Quality Grading of Centrifuge Sludge Pump".
|
Pump Type |
Speed n (r/min) |
Capacity Q (m3/h) |
Head H (m) |
Eff n (%) |
Power On Shaft (Kw) |
Motor |
Driving Form |
Allows the maximum particle diameter (mm) |
Inlet and outlet diameter |
||
|
Type |
Power (Kw) |
Outlet (mm) |
Inlet (mm) |
||||||||
| X50ZBYL-250 | 2950 |
0.0 32.4 54.0 75.6 97.2 |
78.0 73.7 68.0 58.5 43.8 |
0.0 36.0 48.0 51.2 45.4 |
15.1 18.1 20.8 23.5 25.5 |
Y200L2-2 Y225M-2 Y250M-2 |
37 45 55 |
DC DCZ | 13 | 50 | 80 |
